IKO CRBS19013

Crossed Roller Bearings

Slim Type Crossed Roller Bearings, Steel Cage, High Carbon Steel, Open

(BRAND)：IKO

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

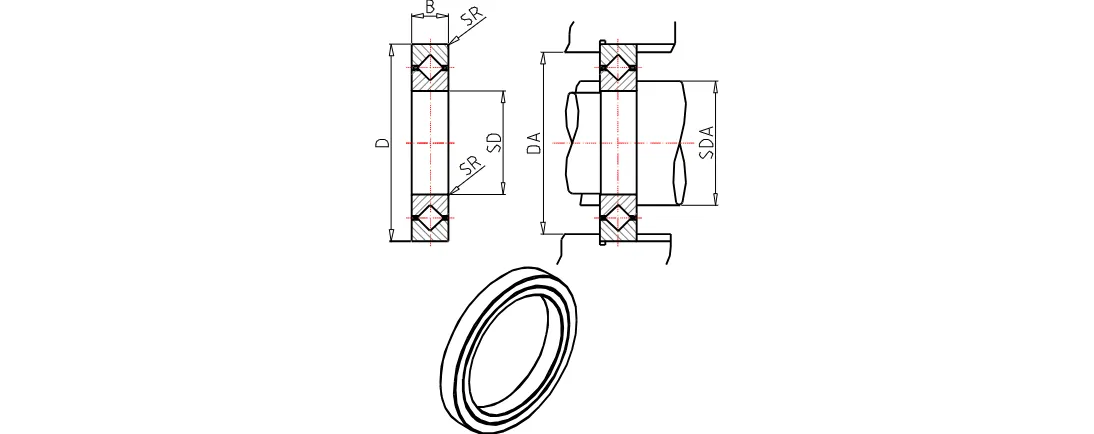

Detailed data of

CRBS19013

Crossed Roller Bearings

Order Number CRBS19013

Shaft Diameter 190 mm

Inside Diameter 190 mm

Outer Diameter 216 mm

Width 13 mm

Min.Chamfer 0.6 mm

Dimension related to the installation 196 mm

Dimension related to the installation 209 mm

Basic dynamic load rating 22100 N

Basic static load rating 46900 N

Mass 740 g
