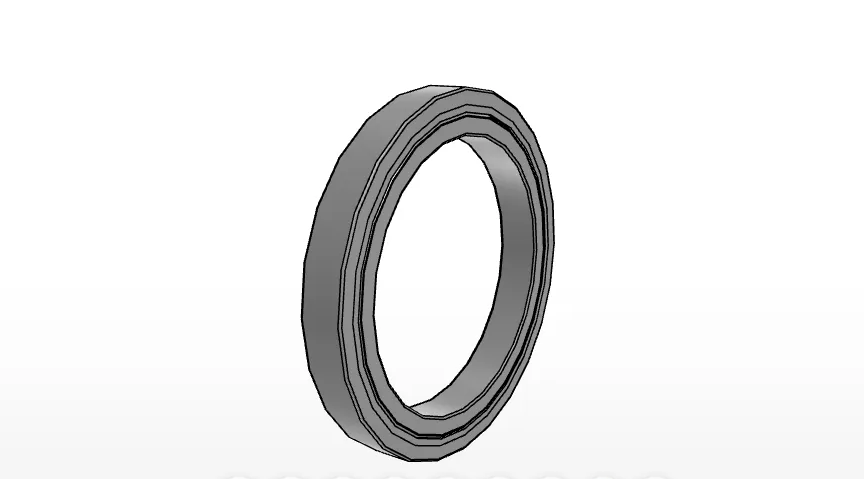

IKO CRBS508VUUC1

Crossed Roller Bearings

Slim Type Crossed Roller Bearings, Full Complement, High Carbon Steel, Sealed, Small Clearance

(BRAND)：IKO

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

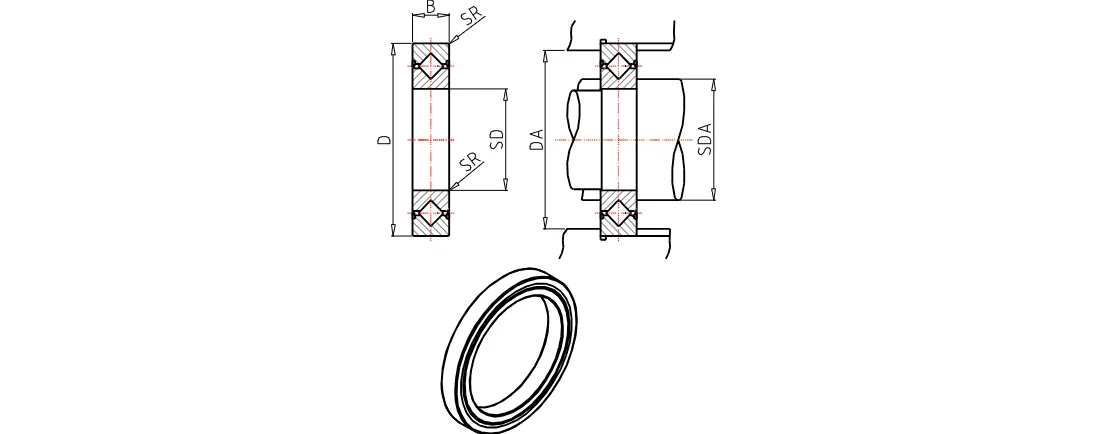

Detailed data of

CRBS508VUUC1

Crossed Roller Bearings

Order Number CRBS508VUU

Shaft Diameter 50 mm

Inside Diameter 50 mm

Outer Diameter 66 mm

Width 8 mm

Min.Chamfer 0.4 mm

Dimension related to the installation 54 mm

Dimension related to the installation 61 mm

Basic dynamic load rating 6930 N

Basic static load rating 9800 N

Mass 84 g
