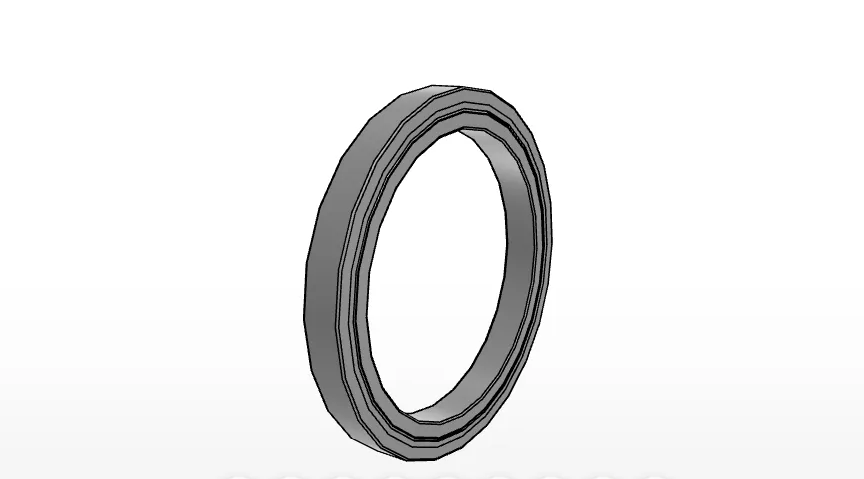

IKO CRBS608VUUT1
Slim Type Crossed Roller Bearings, Full Complement, High Carbon Steel, Sealed, Pre Load
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CRBS608VUU
Shaft Diameter
60
mm
Inside Diameter
60
mm
Outer Diameter
76
mm
Width
8
mm
Min.Chamfer
0.4
mm

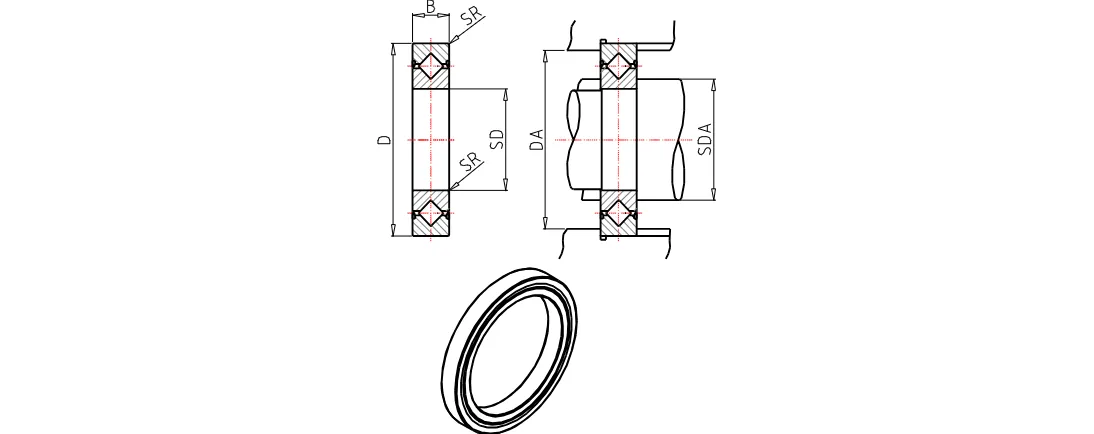

Dimension related to the installation
64
mm
Dimension related to the installation
71
mm
Basic dynamic load rating
7600
N
Basic static load rating
11700
N
Mass
94
g
