IKO LHSA10
L-Ball Right-Hand Threaded

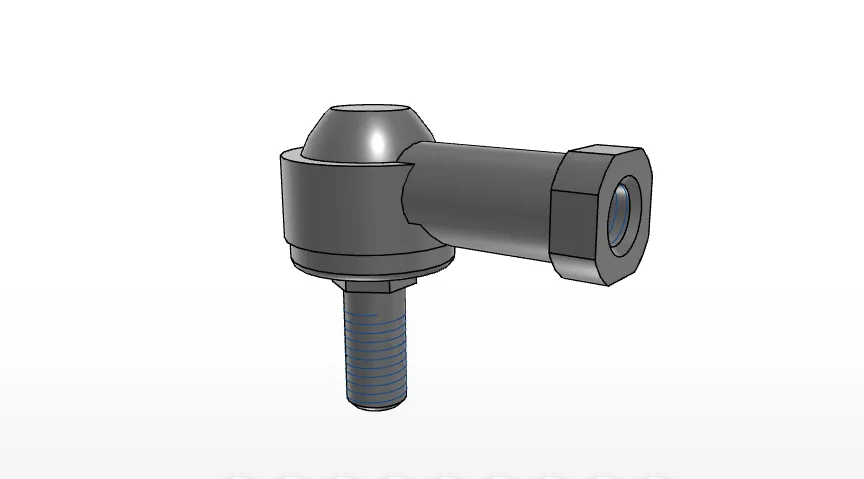

IKO LHSA10 L-Ball Rod End
The IKO LHSA10 is listed in the Rod Ends product series under the Brand > IKO > Rod Ends category. The supplied product title identifies it as an L-Ball Right-Hand Threaded rod end with order number LHSA10.
What is the model and bearing type?
The model is LHSA10, the brand is IKO, and the listed bearing type is Rod Ends.

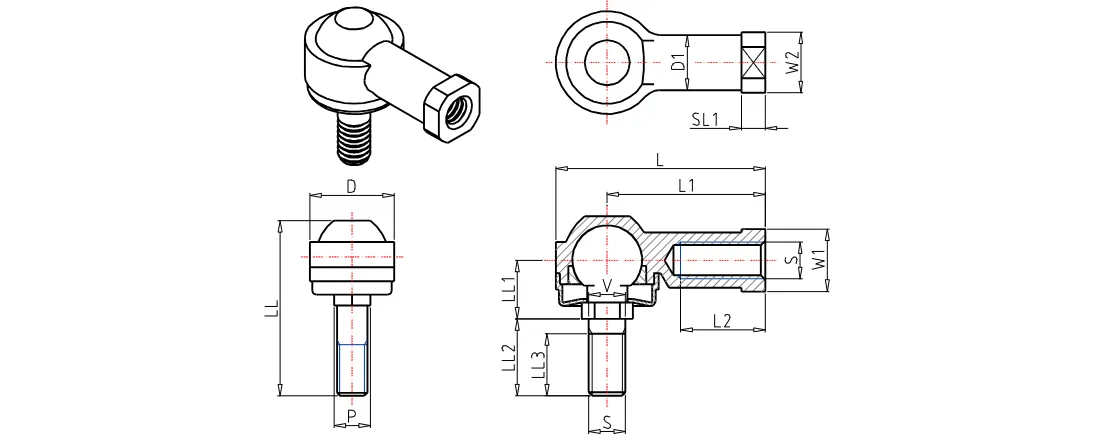

Thread and Main Dimensional Data
The product data lists an M10x1.25 right-hand thread. Supplied dimensions include a 10 mm diameter, a 28 mm diameter, total length of 57.0 mm, a 43 mm dimension, and a length of 23 mm. Additional listed dimensions include 6.5 mm, width values of 17 mm and 17 mm, and diameters of 15.0 mm and 19 mm.
What ball and body-related dimensions are supplied?
The supplied data lists a 19.050 mm diameter of ball, total length of 49.0 mm, width of 12.0 mm, and dimensions of 16.0 mm, 21.0 mm, and 17.0 mm.
Static Load and Mass Information
The LHSA10 rod end has a listed static load capacity of 7400 N and a listed mass of 106 g. These values are taken directly from the supplied product data and should be used alongside the listed dimensions for identification or comparison.
What load and mass values are stated for the LHSA10?
The stated static load capacity is 7400 N, and the stated mass is 106 g. No additional performance, certification, stock, material, or application details are supplied in the product data.
