IKO POS8ECL
Rod End, Metric, Maintenance Free Type, Male Thread (Left Handed)
(BRAND)：IKO
(Availability)：In Stock
Order Number
POS8EC
Inside Diameter
8
mm
Thread
M8x1.25
mm
Diameter
22
mm
Width
9.00
mm
Width of innerring
12
mm
Diameter
10.4
mm
Total Lenght
53
mm
Dimension
42
mm
Length
25
mm
r1s min
0.2
mm
Diameter of Ball
15.875
mm
Dynamic load capacity
14000
N
Static load capacity
7760
N
Mass
32.0
g
POS8ECL IKO Rod End Overview
What is the POS8ECL rod end?
The POS8ECL is an IKO Rod End listed in the metric rod end product range. The supplied product title identifies it as a maintenance-free type with male thread and left-handed thread orientation.
- Brand: IKO
- Series: Rod Ends
- Bearing type: Rod End
- Category path: Brand > IKO > Rod Ends

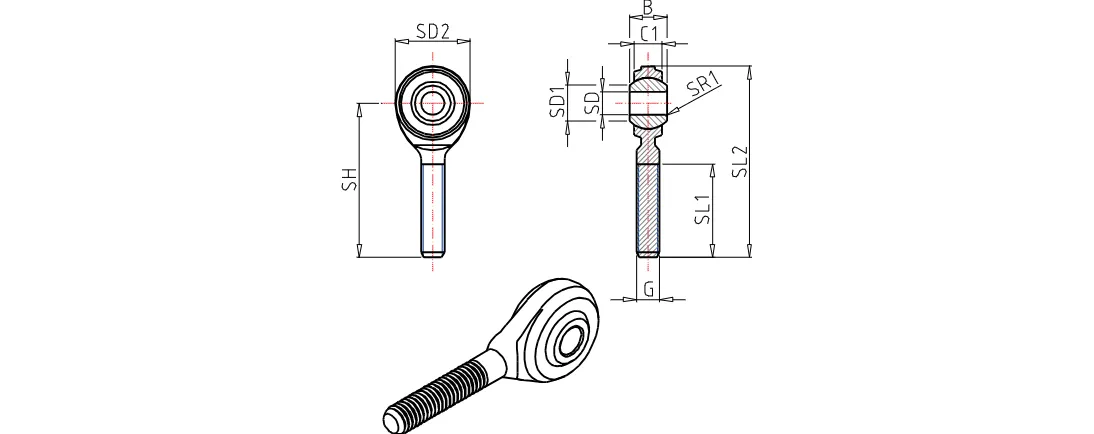

POS8ECL Dimensions and Thread Specification
What measurements are provided for this rod end?
The product data lists the following dimensions for the POS8ECL metric rod end. Verify fitment against the mating assembly before ordering.
- Inside diameter: 8 mm
- Thread: M8x1.25 mm, male, left handed
- Diameter: 22 mm
- Width: 9.00 mm
- Inner ring width: 12 mm
- Diameter: 10.4 mm
- Total length: 53 mm
- Dimension: 42 mm
- Length: 25 mm
- r1s min: 0.2 mm
- Ball diameter: 15.875 mm
POS8ECL Load Capacity and Mass
What load and mass values are stated in the product data?
The supplied specification states a dynamic load capacity of 14,000 N and a static load capacity of 7,760 N. The listed mass is 32.0 g.
- Dynamic load capacity: 14,000 N
- Static load capacity: 7,760 N
- Mass: 32.0 g
