IKO LHSA4
L-Ball Right-Hand Threaded
(BRAND)：IKO
(Availability)：In Stock
Order Number
LHSA4
Thread
M4x0.7
Diameter
4
mm
Diameter
14
mm
Total Lenght
25.0
mm

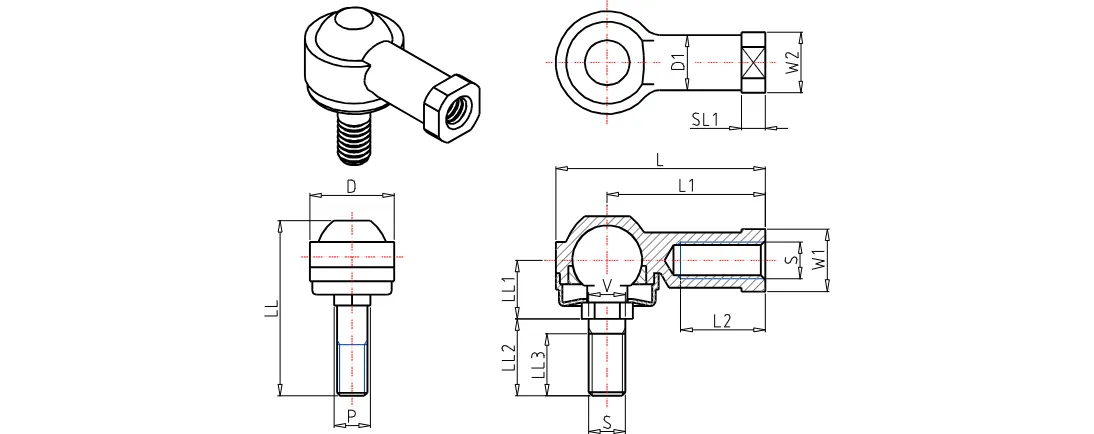

Dimension
18
mm
Lenght
8
mm
Dimension
4.0
mm
Width
8
mm
Width
0
mm
Diameter
8.0
mm
Diameter
10
mm
Total Lenght
19.5
mm
Width
5.5
mm
Dimension
7.0
mm
Dimension
7.0
mm
Dimension
5.0
mm
Diameter of Ball
8.000
mm
Static load capacity
880
N
Mass
11
g

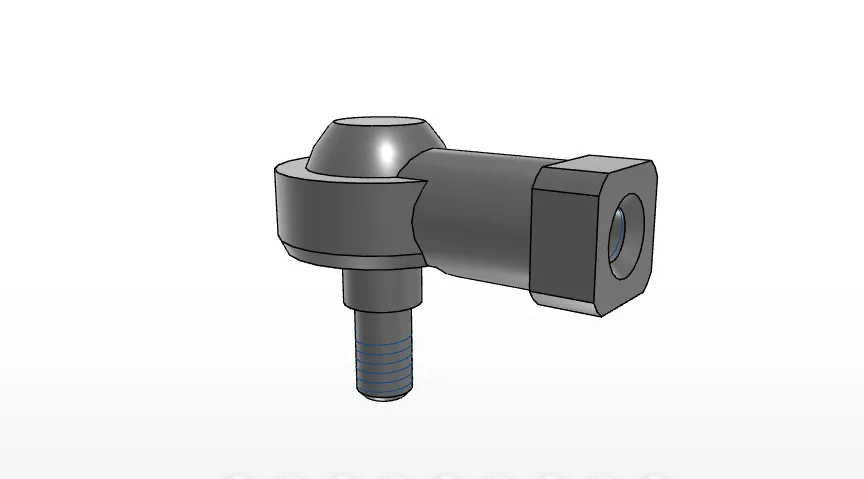

IKO LHSA4 Rod End Overview
What is the LHSA4?
The IKO LHSA4 is an L-Ball rod end in the IKO Rod Ends series. The supplied data identifies it as a right-hand threaded rod end with order number LHSA4.
Listed Dimensions and Specifications
What dimensions and values are provided?
The product data lists the following specifications for the LHSA4:
- Thread: M4x0.7
- Diameter values: 4 mm, 14 mm, 8.0 mm, 10 mm, and 8.000 mm ball diameter
- Length values: 25.0 mm total length, 19.5 mm total length, and 8 mm length
- Other dimensions: 18 mm, 4.0 mm, 8 mm, 5.5 mm, 7.0 mm, 7.0 mm, and 5.0 mm
- Static load capacity: 880 N
- Mass: 11 g
Product Identification Details
How is this rod end categorized?
The LHSA4 is categorized under Brand > IKO > Rod Ends and its bearing type is listed as Rod Ends. It is described as an L-Ball Right-Hand Threaded product.
