IKO LHSA5
L-Ball Right-Hand Threaded
IKO LHSA5 Rod End Product Overview
The IKO LHSA5 is part of the Rod Ends series and is listed under the Brand > IKO > Rod Ends category path. The supplied product title identifies it as an L-Ball Right-Hand Threaded rod end.
What is the model and bearing type?
The order number and model are LHSA5, the brand is IKO, and the listed bearing type is Rod Ends.
Stated Specifications for the LHSA5 Rod End

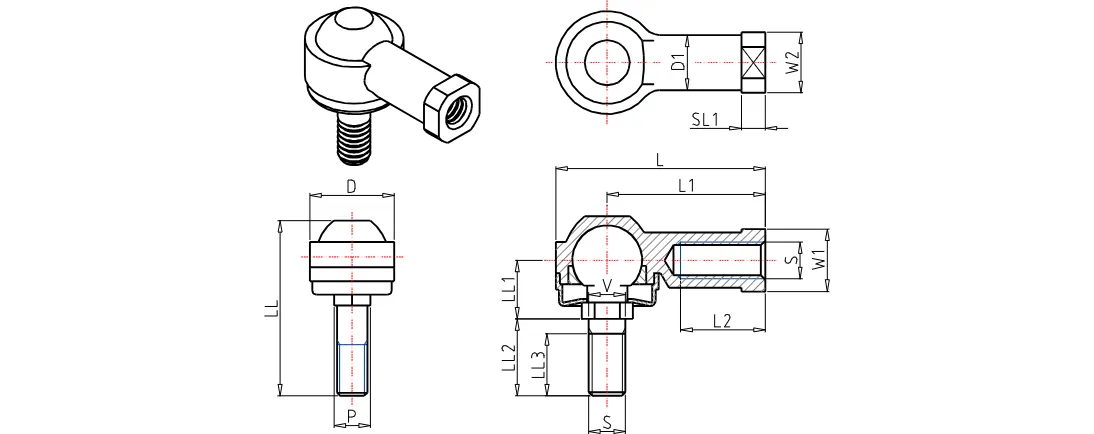

The product data lists the thread and dimensional details for the LHSA5. These specifications are provided as supplied and should be checked against the required installation dimensions before selection.
- Thread: M5x0.8
- Diameter values: 5 mm, 17 mm, 10.0 mm, 12 mm
- Diameter of ball: 11.112 mm
- Length values: total length 38.5 mm, total length 32.5 mm, length 16 mm
- Other dimensions: 30 mm, 5.0 mm, 10 mm, 8.0 mm, 12.0 mm, 13.0 mm, 10.0 mm
- Static load capacity: 1180 N
- Mass: 27 g
What thread size is specified for the LHSA5?
The supplied data specifies an M5x0.8 thread, with the product title identifying it as right-hand threaded.
LHSA5 Load and Mass Information
The supplied product data includes a static load capacity and mass for the IKO LHSA5. These values support direct comparison with the stated product record, without adding claims beyond the supplied information.
What static load capacity and mass are listed?
The LHSA5 is listed with a static load capacity of 1180 N and a mass of 27 g.
