IKO LHSA8
L-Ball Right-Hand Threaded

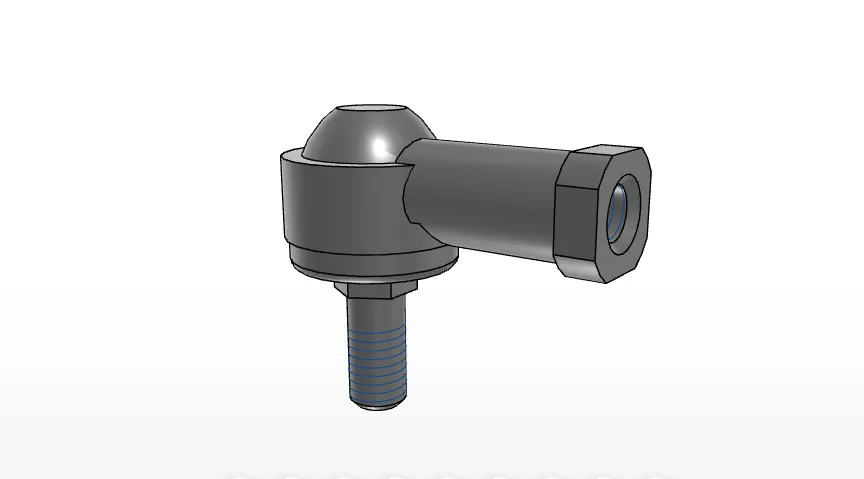

IKO LHSA8 Rod End Overview
The IKO LHSA8 is part of the IKO Rod Ends series and is listed as an L-Ball Right-Hand Threaded rod end. Its order number is LHSA8, and the specified thread size is M8x1.25.
What type of bearing is the LHSA8?
The supplied product data identifies the LHSA8 as a rod end within the IKO Rod Ends product line. No additional bearing type or application claim is provided beyond this classification.

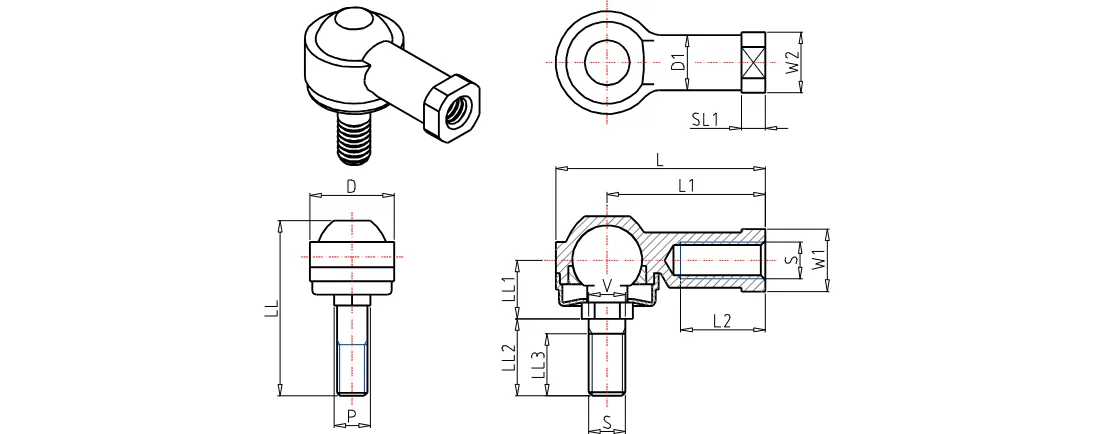

LHSA8 Dimensions and Construction Data
The listed dimensional data for the LHSA8 includes an 8 mm diameter, a second 24 mm diameter, a 48.0 mm total length, and a second stated total length of 41.5 mm. Additional supplied measurements include:
- 36 mm dimension
- 19 mm length
- 5.0 mm dimension
- 14 mm width, listed twice
- 13.0 mm and 16 mm diameters
- 10.0 mm width
- 14.5 mm, 17.0 mm, and 12.5 mm dimensions
- 15.000 mm diameter of ball
What thread and ball size are specified for the LHSA8?
The LHSA8 is specified with M8x1.25 right-hand thread and a 15.000 mm ball diameter. The product title identifies the thread direction as right-hand.
LHSA8 Load Rating and Mass
The supplied product data lists a static load capacity of 4380 N and a mass of 64 g for the IKO LHSA8 rod end. These values are provided as product specifications rather than performance guarantees.
What are the stated static load and mass values?
The stated static load capacity is 4380 N, and the stated mass is 64 g. No dynamic load rating, material grade, certification, stock status, or application information is included in the supplied data.
