IKO LHSA8L
L-Ball Left-Hand Threaded

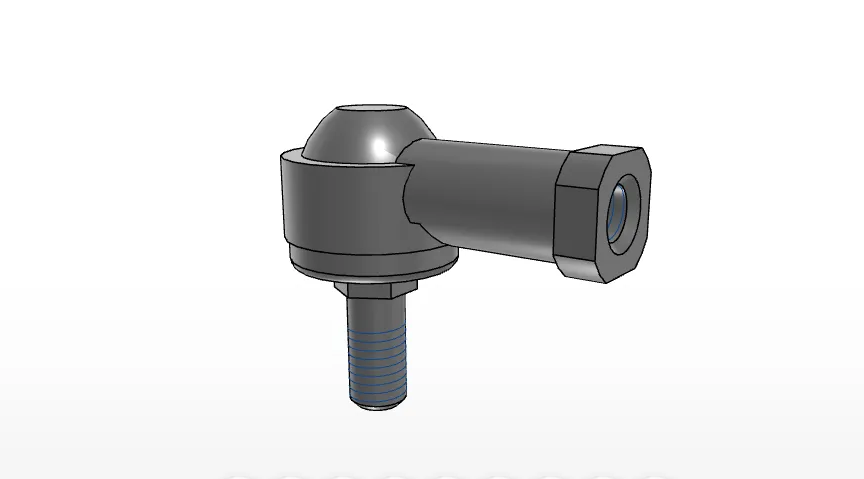

IKO LHSA8L Rod End Overview
The LHSA8L is an IKO rod end in the Rod Ends series, identified by the supplied product data as an L-Ball left-hand threaded model. Its order number is listed as LHSA8.
What bearing type and brand are associated with LHSA8L?
The model is supplied under the IKO brand and is classified as a Rod End. The listed category path is Brand > IKO > Rod Ends.
LHSA8L Thread and Dimensional Details
The supplied data lists an M8x1.25 left-hand thread and an 8 mm diameter. Additional recorded measurements include a 15.000 mm ball diameter, 24 mm diameter, 48.0 mm total length, 36 mm dimension, 19 mm length, and 14 mm widths. The data also lists 13.0 mm and 16 mm diameters, a 41.5 mm total length, 10.0 mm width, and dimensions of 5.0 mm, 14.5 mm, 17.0 mm, and 12.5 mm.
What thread size is specified for the LHSA8L?
The supplied specification lists M8x1.25 threading for the LHSA8L. The product title identifies it as a left-hand threaded L-Ball rod end.
LHSA8L Load and Mass Specifications
The product data records a static load capacity of 4380 N and a mass of 64 g. These values are provided as listed product specifications for the IKO LHSA8L rod end.
What static load capacity and mass are listed?
- Static load capacity: 4380 N
- Mass: 64 g
