IKO LRTZ9010536
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNA4918UU
IKO LRTZ9010536 Inner Ring for Metric Bearing Assembly
The LRTZ9010536 is an IKO Inner Rings series component listed for general usage and for assembly with RNA4918UU. The product data identifies the bearing type as an inner ring and the material as high carbon chrome steel.
What is the LRTZ9010536?
The LRTZ9010536 is a metric inner ring within the IKO Inner Rings product family. It is intended to be considered with the RNA4918UU assembly information provided in the product data.

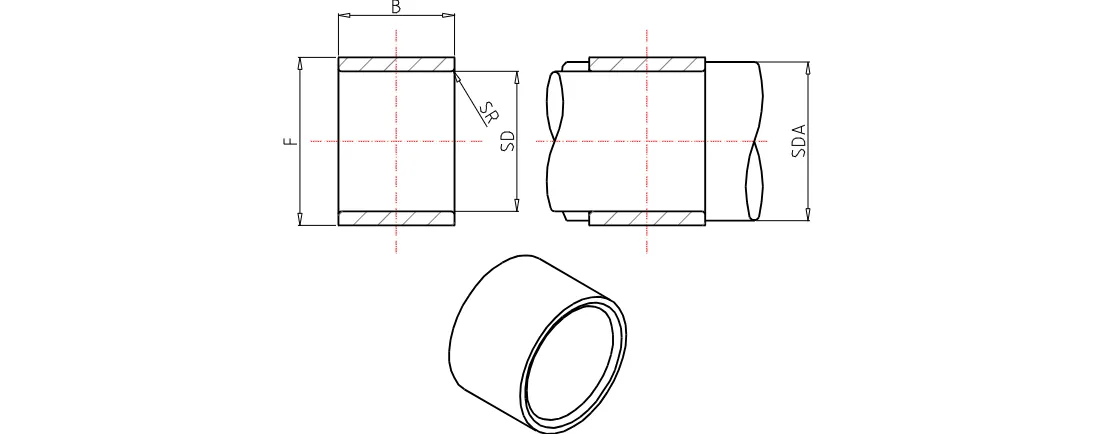

Dimension and Product Specifications
- Order number: LRTZ9010536
- Brand: IKO
- Series: Inner Rings
- Shaft diameter / inside diameter: 90 mm
- Outside diameter: 105 mm
- Width: 36 mm
- rs minimum: 1.10 mm
- da minimum: 96.5 mm
- da maximum: 103.0 mm
- Mass: 630.0 g
What dimensions and related values are supplied?
The supplied data lists a 90 mm inside diameter, 105 mm outside diameter, and 36 mm width. Additional listed values include a 1.10 mm minimum rs, a 96.5 mm minimum da, a 103.0 mm maximum da, and a mass of 630.0 g.
Material and Assembly Information
The product data identifies the inner ring material as high carbon chrome steel, while the descriptive title refers to high carbon steel. The specified assembled bearing reference is RNA 4918UU, also written as RNA4918UU.
Which bearing is listed for assembly with this inner ring?
The product data lists the LRTZ9010536 for assembly with RNA4918UU. Compatibility should be checked against the relevant bearing arrangement and the dimensions provided.
