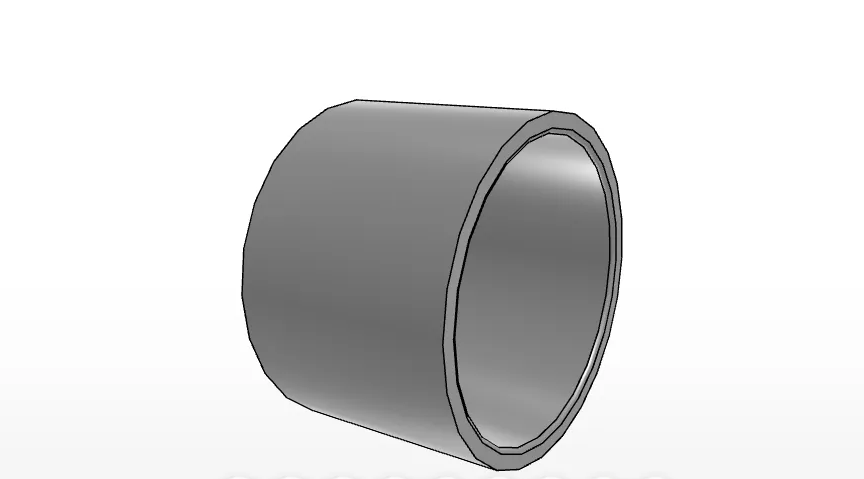

IKO LRTZ9010564
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNA6918UU
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRTZ9010564
Shaft Dimaeter
90
mm
Inside Diamater
90
mm
Outer Diameter
105
mm
Width
64
mm
rs min.
1.10
mm
da min
96.5
mm
da max
103.0
mm
Assembled bearings
RNA 6918UU
Assembled bearings
-
Assembled bearings
-
Assembled bearings
-
Mass
1120.0
g
IKO LRTZ9010564 Inner Ring for Metric Assemblies
The IKO LRTZ9010564 is an inner ring in the IKO Inner Rings product series. It is listed for general usage and is intended to assemble with RNA6918UU.
What bearing type and brand does this inner ring represent?
This is an IKO Inner Ring, model LRTZ9010564, within the category path Brand > IKO > Inner Rings.
Metric Dimensions and Assembly Information
- Shaft diameter: 90 mm
- Inside diameter: 90 mm
- Outer diameter: 105 mm
- Width: 64 mm
- rs minimum: 1.10 mm
- da minimum: 96.5 mm
- da maximum: 103.0 mm
- Assembled bearing: RNA 6918UU
- Mass: 1120.0 g
What are the stated size details for the LRTZ9010564?
The supplied data lists a 90 mm inside diameter, 105 mm outer diameter, 64 mm width, 1.10 mm minimum corner radius, and da range from 96.5 mm to 103.0 mm.
High Carbon Chrome Steel Construction
The LRTZ9010564 inner ring is specified as high carbon chrome steel in the bearing material data. The product description also identifies the component as a metric inner ring for general usage.
Which material is recorded for this IKO inner ring?
The structured product data records the bearing material as High Carbon Chrome Steel, also described in the title information as high carbon steel.
