IKO NART5UUR/SG
Roller Follower, Metric, Non Separable Type, Caged, Solid Lube, High Carbon Chrome Steel, Oil Hole, Sealed, Crowned
NART5UUR/SG IKO Roller Follower Overview
The NART5UUR/SG is an IKO Roller Followers series bearing. It is listed as a metric, non-separable, caged roller follower with solid lube, an oil hole, sealed construction, and a crowned configuration. Its bearing material is high carbon chrome steel.
What is the model and bearing type?
The order number is NART5UUR/SG, and the bearing type is Roller Followers. The product is categorized under Brand > IKO > Roller Followers.

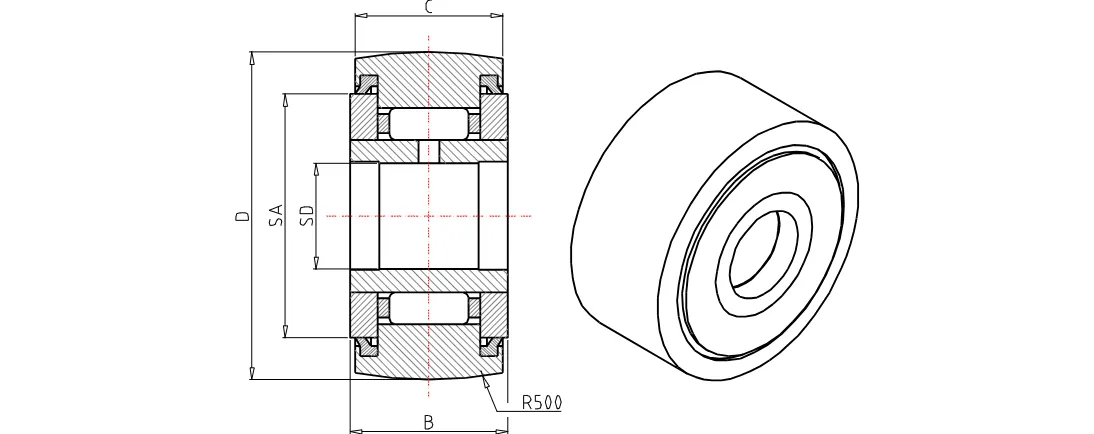

Stated Dimensions and Mass
The supplied specifications list a shaft diameter and inside diameter of 5 mm, an outer diameter of 16 mm, an inner-ring width of 12 mm, a width of 11 mm, and a diameter of 12.0 mm. The listed mass is 14.5 g.
What dimensions are provided for the NART5UUR/SG?
- Shaft diameter: 5 mm
- Inside diameter: 5 mm
- Outer diameter: 16 mm
- Width of inner ring: 12 mm
- Width: 11 mm
- Diameter: 12.0 mm
- Mass: 14.5 g
Load Ratings and Construction Details
The data lists a basic dynamic load rating of 3650 N, a basic static load rating of 3680 N, and a maximum allowable load of 3680 N. The internal structure is identified as a cage type, and the description includes high carbon chrome steel, solid lube, an oil hole, sealing, and a crowned form.
What construction and load information is available?
- Internal structure: Cage Type
- Material: High Carbon Chrome Steel
- Features in the supplied description: solid lube, oil hole, sealed, and crowned
- Basic dynamic load rating: 3650 N
- Basic static load rating: 3680 N
- Maximum allowable load: 3680 N
