IKO RNAST30
Roller Follower, Metric, Separable Type, W/o Inner Ring, Caged, High Carbon Chrome Steel, Open, Cylindrical
(BRAND)：IKO
(Availability)：In Stock
Order Number
RNAST30
Shaft Diameter
38
mm
Outer Diameter
62
mm
Width
19.800
mm
rs min.
1.000
Inscribed circle diameter
38
mm
Basic dynamic load rating
30500
N
Basic static load rating
45400
N
Mass
255.0
g
IKO RNAST30 Roller Follower Specifications
What are the basic dimensions of the RNAST30?
The IKO RNAST30 is a metric roller follower in the Roller Followers series. The supplied data lists a shaft diameter and inscribed circle diameter of 38 mm, an outer diameter of 62 mm, and a width of 19.800 mm.
- Model: RNAST30
- Brand: IKO
- Series: Roller Followers
- Shaft diameter: 38 mm
- Outer diameter: 62 mm
- Width: 19.800 mm
- rs min.: 1.000
- Mass: 255.0 g
RNAST30 Design and Material Details
What construction features are identified for this bearing?

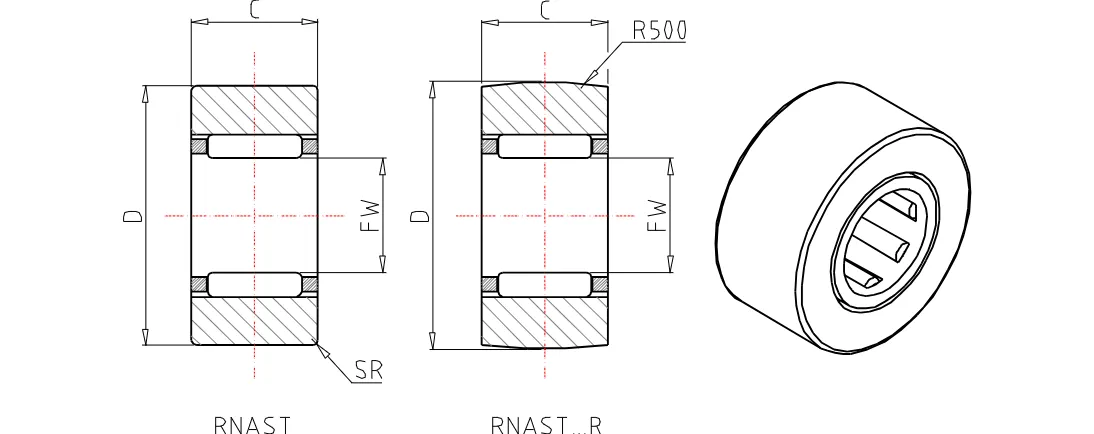

The product data identifies the RNAST30 as a separable, open, cylindrical roller follower supplied without an inner ring. It uses a cage type internal structure and is made from high carbon chrome steel.
- Bearing type: Roller Followers
- Design: Metric, separable type, without inner ring
- Internal structure: Cage type
- Material: High carbon chrome steel
- Configuration: Open, cylindrical
RNAST30 Load Rating Information
What load ratings are provided in the product data?
According to the supplied specifications, the RNAST30 has a basic dynamic load rating of 30500 N and a basic static load rating of 45400 N. These values should be used as listed product data when reviewing or comparing the bearing.
- Basic dynamic load rating: 30500 N
- Basic static load rating: 45400 N
- Order number: RNAST30
