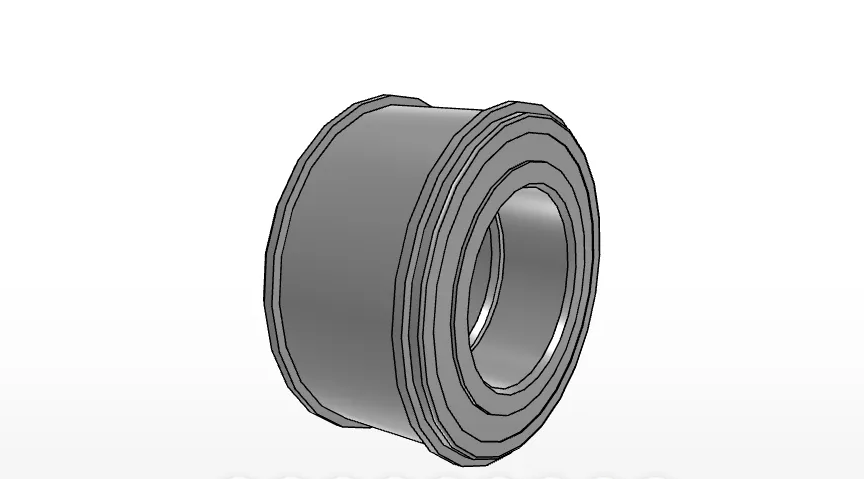

IKO NAS5008ZZNR
Roller Bearings for Sheaves, High Carbon Steel, Oil Hole, Shielded
(BRAND)：IKO
(Availability)：In Stock

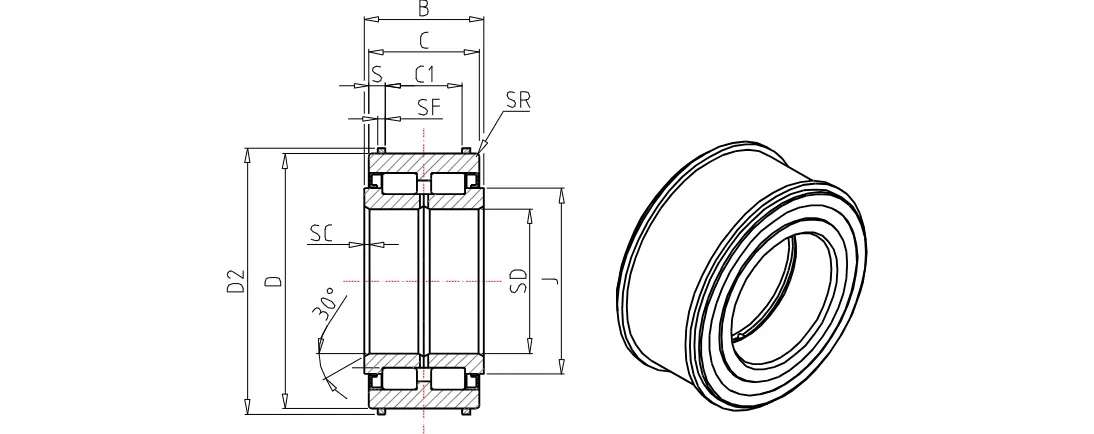

Order Number
NAS5008ZZNR
Shaft Diameter
40
mm
Inside diameter
40
mm
Outer Diameter
68
mm
Diameter
71.8
mm
Width of innerring
38
mm
Width
37
mm
Dimension
28
mm
Dimension
4.5
mm
Dimension
2.0
mm
Chamfer
1.5
mm
rs min.
0.6
mm
Diameter
50.0
mm
Basic dynamic load rating
79500
N
Basic static load rating
116000
N
Mass
0.55
kg
