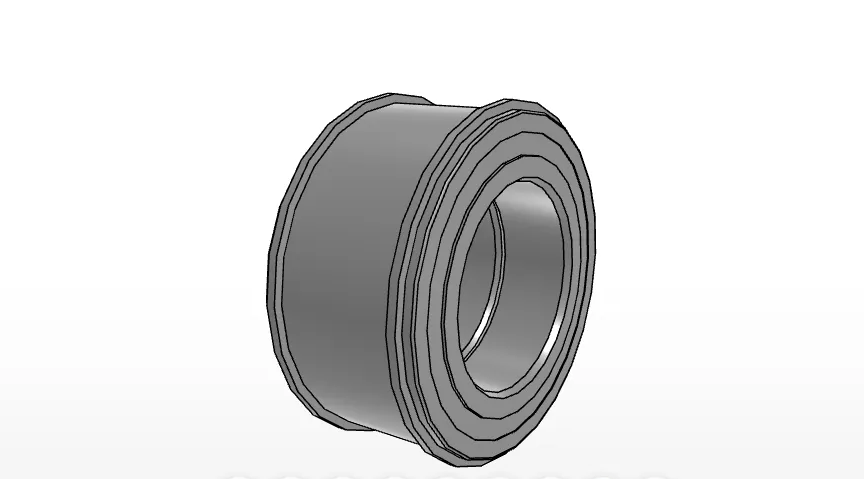

IKO NAS5011ZZNR
Roller Bearings for Sheaves, High Carbon Steel, Oil Hole, Shielded
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NAS5011ZZNR

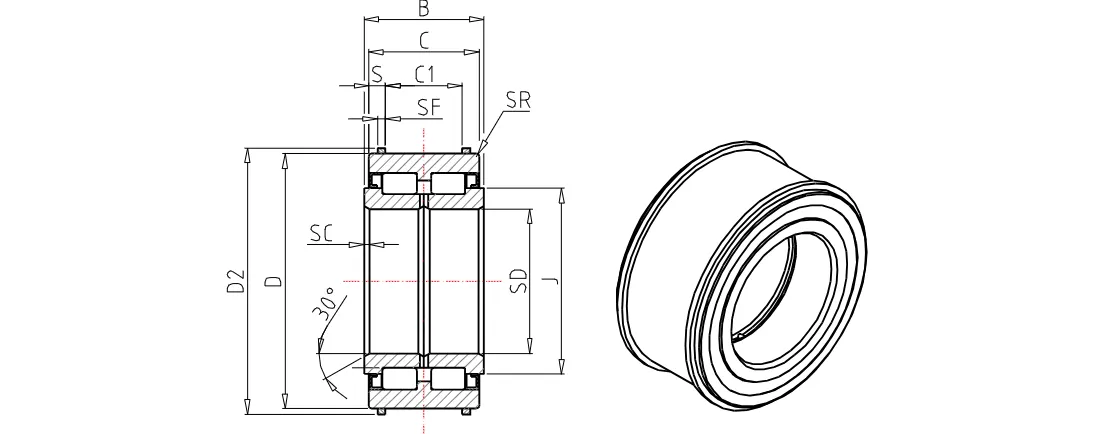

Shaft Diameter
55
mm
Inside diameter
55
mm
Outer Diameter
90
mm
Diameter
94.8
mm
Width of innerring
46
mm
Width
45
mm
Dimension
34
mm
Dimension
5.5
mm
Dimension
2.5
mm
Chamfer
2.0
mm
rs min.
0.6
mm
Diameter
68.0
mm
Basic dynamic load rating
118000
N
Basic static load rating
193000
N
Mass
1.15
kg
