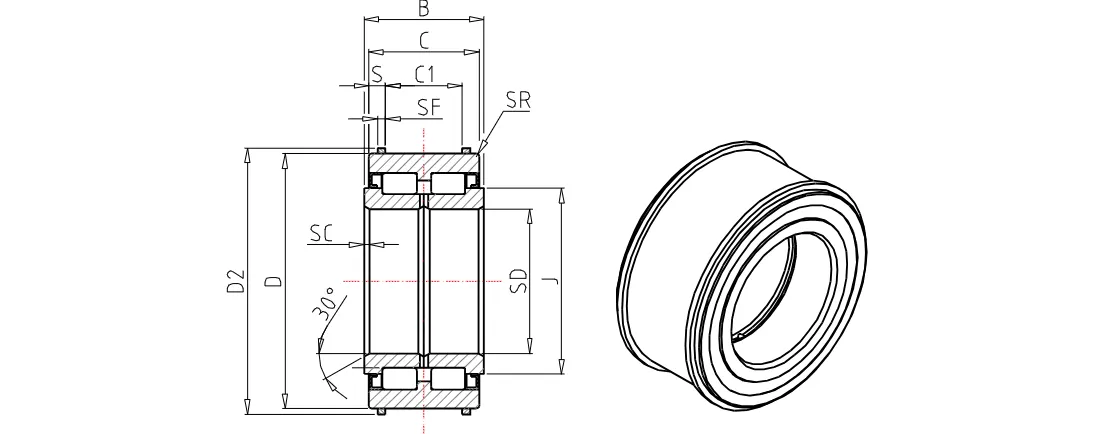

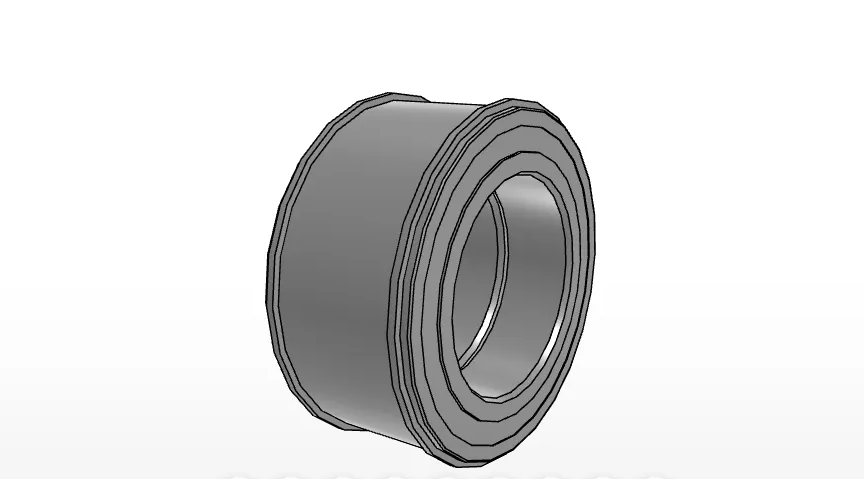

IKO NAS5014ZZNR
Roller Bearings for Sheaves, High Carbon Steel, Oil Hole, Shielded
(BRAND)：IKO
(Availability)：In Stock
Order Number
NAS5014ZZNR
Shaft Diameter
70
mm
Inside diameter
70
mm
Outer Diameter
110
mm
Diameter
114.5
mm
Width of innerring
54
mm
Width
53
mm
Dimension
42
mm
Dimension
5.5
mm
Dimension
2.5
mm
Chamfer
2.0
mm
rs min.
0.6
mm
Diameter
84.0
mm
Basic dynamic load rating
171000
N
Basic static load rating
284000
N
Mass
1.90
kg
