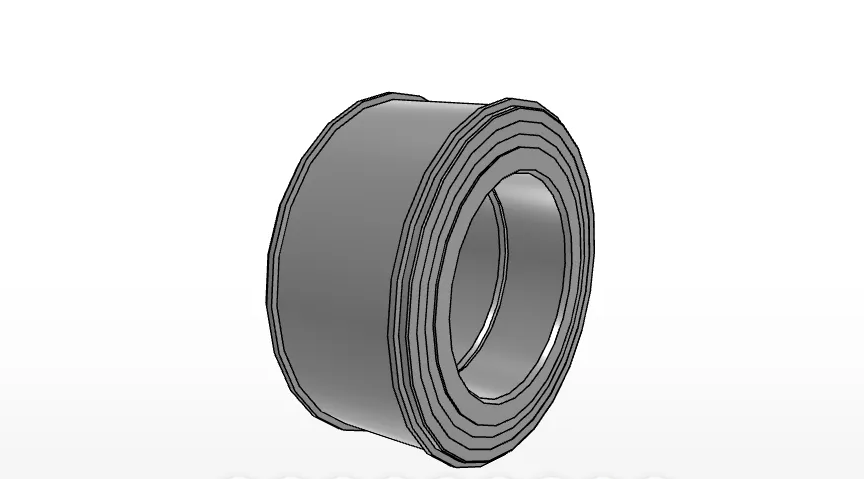

IKO NAS5018UUNR
Roller Bearings for Sheaves, High Carbon Steel, Inner Ring With Oil Holes, With Seals
(BRAND)：IKO
(Availability)：In Stock
Order Number
NAS5018UUNR

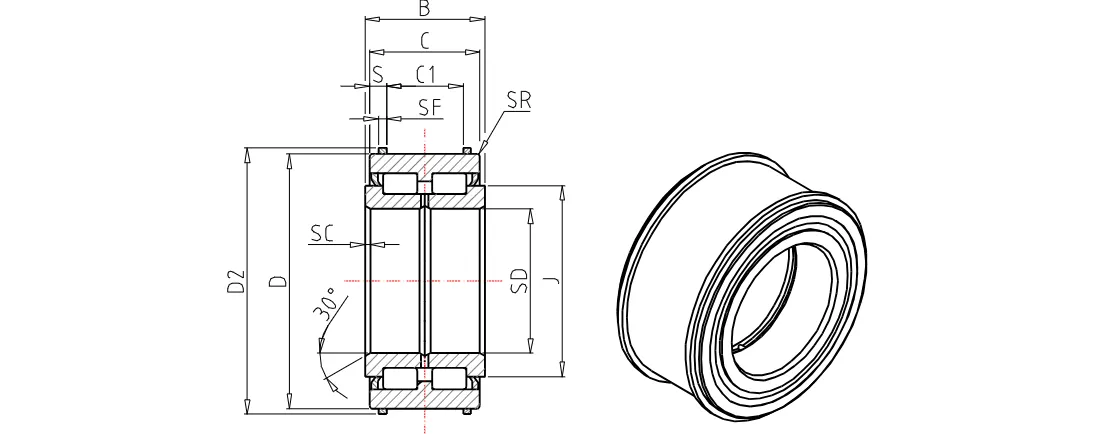

Shaft Diameter
90
mm
Inside Diameter
90
mm
Outer Diameter
140
mm
Diameter
145.4
mm
Width of innerring
67
mm
Width
66
mm
Dimension
54
mm
Dimension
6.0
mm
Dimension
2.5
mm
Chamfer
2.5
mm
rs min.
0.6
mm
Diameter
110.0
mm
Basic dynamic load rating
305000
N
Basic static load rating
540000
N
Mass
3.70
kg
