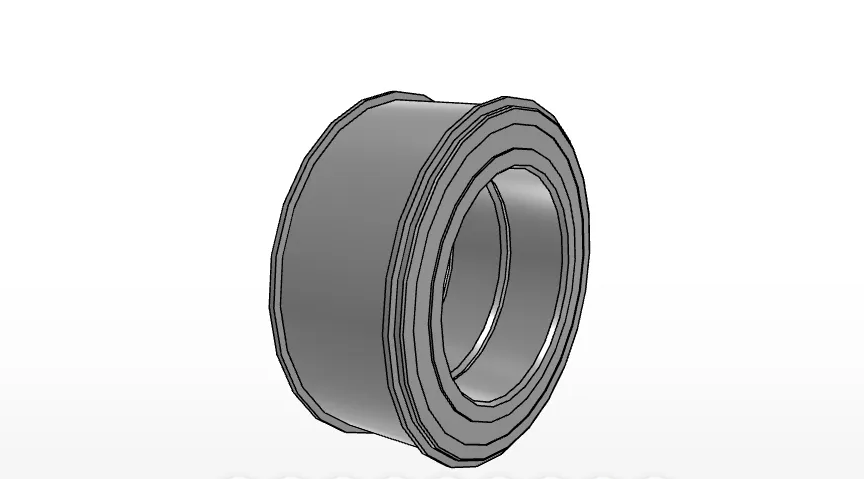

IKO NAS5024ZZNR
Roller Bearings for Sheaves, High Carbon Steel, Inner Ring With Oil Holes, With Shields
(BRAND)：IKO
(Availability)：In Stock
Order Number
NAS5024ZZNR
Shaft Diameter
120
mm
Inside diameter
120
mm
Outer Diameter
180
mm
Diameter
188.4
mm
Width of innerring
80
mm
Width
79
mm
Dimension
65
mm
Dimension
7.0
mm
Dimension
3.0
mm
Chamfer
3.0
mm
rs min.
1.0
mm
Diameter
139.5
mm
Basic dynamic load rating
400000
N
Basic static load rating
750000
N
Mass
6.95
kg
