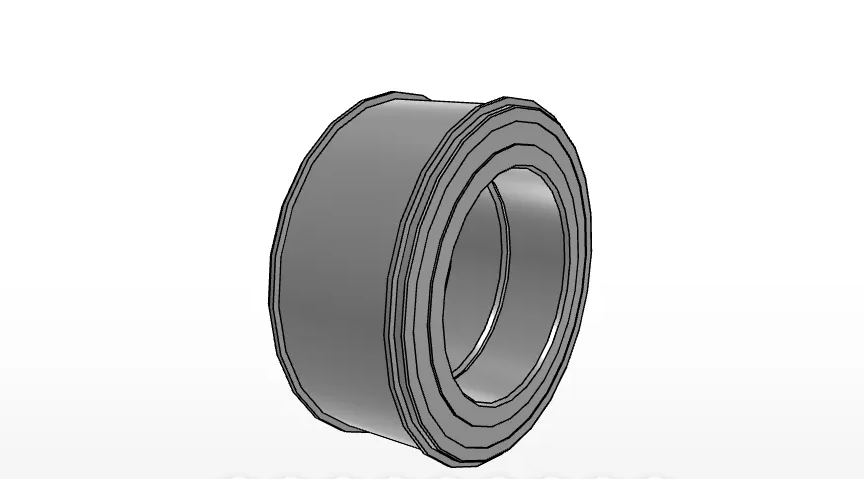

IKO NAS5028ZZNR
Roller Bearings for Sheaves, High Carbon Steel, Inner Ring With Oil Holes, With Shields
(BRAND)：IKO
(Availability)：In Stock

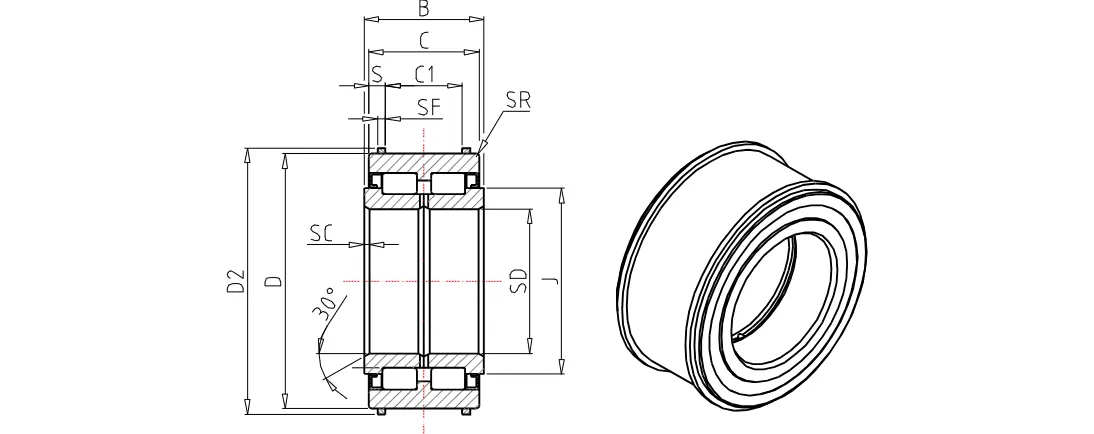

Order Number
NAS5028ZZNR
Shaft Diameter
140
mm
Inside diameter
140
mm
Outer Diameter
210
mm
Diameter
218.4
mm
Width of innerring
95
mm
Width
94
mm
Dimension
77
mm
Dimension
8.5
mm
Dimension
3.0
mm
Chamfer
3.0
mm
rs min.
1.0
mm
Diameter
167.0
mm
Basic dynamic load rating
543000
N
Basic static load rating
1070000
N
Mass
11.00
kg
