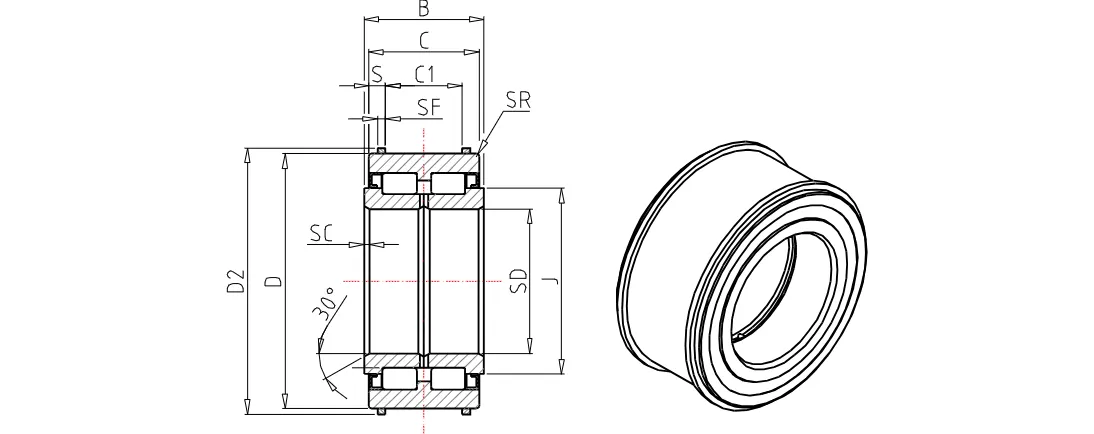

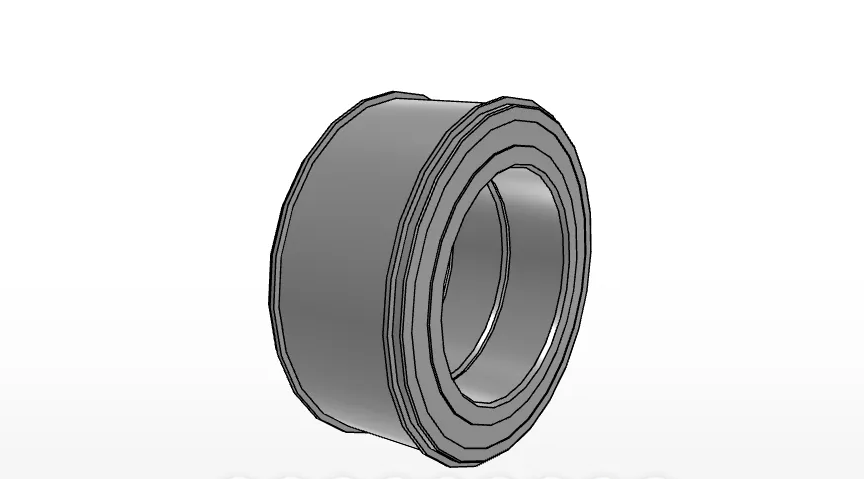

IKO NAS5030ZZNR
Roller Bearings for Sheaves, High Carbon Steel, Inner Ring With Oil Holes, With Shields
(BRAND)：IKO
(Availability)：In Stock
Order Number
NAS5030ZZNR
Shaft Diameter
150
mm
Inside diameter
150
mm
Outer Diameter
225
mm
Diameter
233.4
mm
Width of innerring
100
mm
Width
99
mm
Dimension
81
mm
Dimension
9.0
mm
Dimension
3.0
mm
Chamfer
3.5
mm
rs min.
1.0
mm
Diameter
176.5
mm
Basic dynamic load rating
623000
N
Basic static load rating
1210000
N
Mass
13.50
kg
