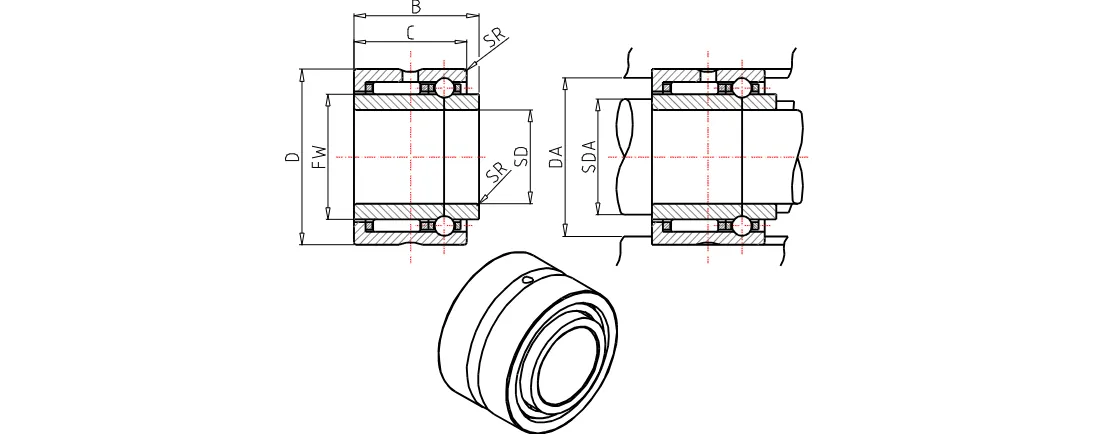

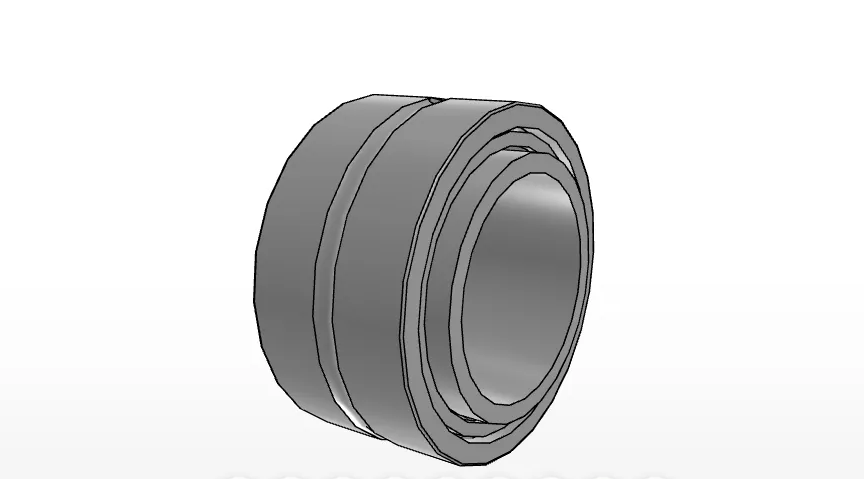

IKO NATB5906
Combined with Three Point Contact Ball Bearing
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NATB5906
Shaft Diameter
30
mm
Inside Diameter
30
mm
Outside Diameter
47
mm
Width
23
mm
Width of innerring
25
mm
rs min.
0.3
mm
Inscribed circle diameter
35
mm
da min
32
mm
Da max
45
mm
Basic dynamic load rating (Radial)
17700
N
Basic dynamic load rating (Axial)
4550
N
Basic static load rating (Radial)
26800
N
Basic static load rating (Axial)
8460
N
Mass
157.0
g
