IKO NAU4914UU
Caged Roller Bearings, High Carbon Steel, Outer Ring With Oil Holes, With Seals
IKO NAU4914UU Caged Roller Bearings
What are the identifying details for the NAU4914UU?
The IKO NAU4914UU is listed within the Roller Bearings product series and category path. Its supplied title identifies it as a caged roller bearing with an outer ring featuring oil holes and seals. The bearing material is listed as High Carbon Chrome Steel, and its internal structure is listed as Cage Type.
- Model: NAU4914UU
- Brand: IKO
- Bearing type: Roller Bearings
- Material: High Carbon Chrome Steel
- Internal structure: Cage Type

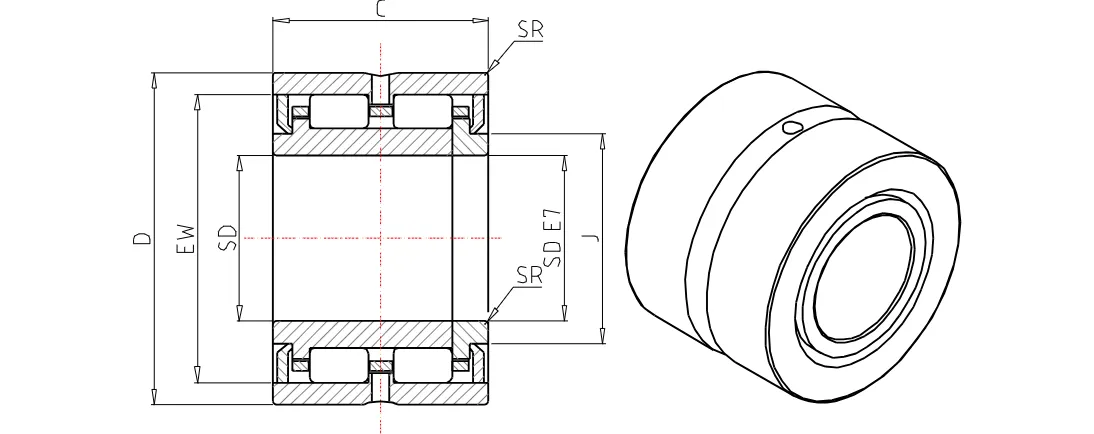

NAU4914UU Dimensions and Mass
What dimensions are provided for this bearing?
The supplied product data lists the following dimensions for the NAU4914UU bearing. These measurements can be used to compare the bearing against the specified shaft or housing requirements.
- Shaft diameter: 70 mm
- Inside diameter: 70 mm
- Outer diameter: 100 mm
- Width: 30 mm
- rs min.: 1.0 mm
- Additional diameters: 79.0 mm and 91.5 mm
- Mass: 705.0 g
NAU4914UU Load Ratings and Construction Features
What load ratings and design features are included in the data?
The supplied data provides basic load ratings and describes selected construction features. The outer ring is identified as having oil holes, and the bearing is listed with seals. No additional application, certification, stock, or performance claims are included in the supplied data.
- Basic dynamic load rating: 53,700 N
- Basic static load rating: 84,600 N
- Construction: Caged roller bearing with seals and an outer ring with oil holes
- Material: High Carbon Chrome Steel
