IKO NAU4915UU
Caged Roller Bearings, High Carbon Steel, Outer Ring With Oil Holes, With Seals
(BRAND)：IKO
(Availability)：In Stock
Order Number
NAU4915UU
Shaft Diameter
75
mm
Inside Diameter
75
mm
Outer Diameter
105
mm
Width
30
mm
rs min.
1.0
mm
Diameter
83.5
mm
Diameter
95.5
mm
Basic dynamic load rating
54800
N
Basic static load rating
88200
N
Mass
750.0
g
IKO NAU4915UU Roller Bearing Overview
What are the key identifying details for the NAU4915UU?
The NAU4915UU is an IKO Roller Bearings product. The supplied data identifies it as a caged roller bearing with an outer ring that includes oil holes and seals. Ordering information is listed under order number NAU4915UU.
- Brand: IKO
- Series: Roller Bearings
- Internal structure: Cage type
- Configuration: Outer ring with oil holes, with seals

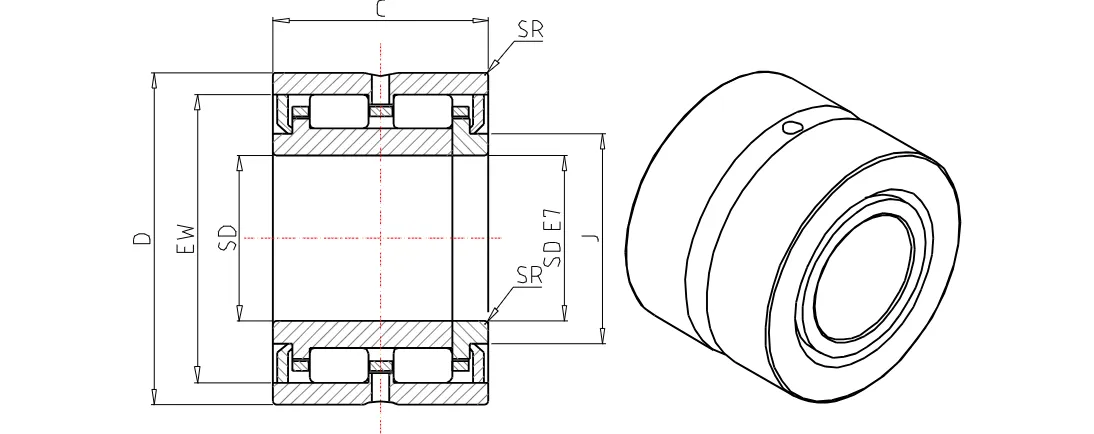

NAU4915UU Dimensions and Construction
What dimensions and material are provided for this bearing?
The bearing data lists a shaft diameter and inside diameter of 75 mm, an outer diameter of 105 mm, and a width of 30 mm. The stated bearing material is high carbon chrome steel, and the title description also refers to high carbon steel.
- Bore / shaft diameter: 75 mm
- Outside diameter: 105 mm
- Width: 30 mm
- rs minimum: 1.0 mm
- Additional diameters: 83.5 mm and 95.5 mm
- Mass: 750.0 g
NAU4915UU Load Rating Data
What basic load ratings are recorded in the product data?
The supplied specification lists a basic dynamic load rating of 54800 N and a basic static load rating of 88200 N. These values are provided as product data and should be checked against the intended equipment requirements before selection.
- Basic dynamic load rating: 54800 N
- Basic static load rating: 88200 N
- Category path: Brand > IKO > Roller Bearings
