IKO NAU4917UU
Caged Roller Bearings, High Carbon Steel, Outer Ring With Oil Holes, With Seals
NAU4917UU IKO Roller Bearing Details
The NAU4917UU is an IKO roller bearing in the Roller Bearings product series. It features a caged internal structure, high carbon chrome steel construction, an outer ring with oil holes, and seals.
What are the basic identifying details of this bearing?
The order number is NAU4917UU, the brand is IKO, and the bearing type is listed as Roller Bearings. The product title identifies it as caged roller bearings made from high carbon steel, with an outer ring that has oil holes and includes seals.

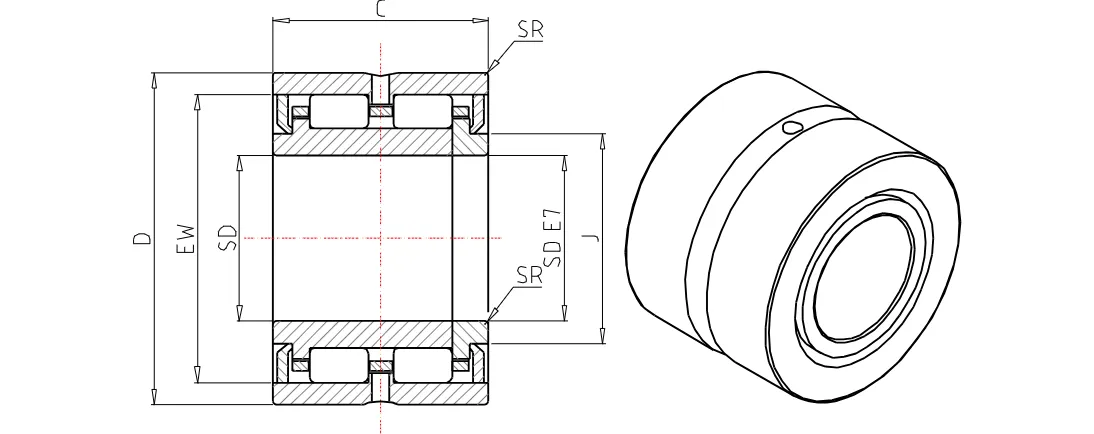

NAU4917UU Dimensions and Construction Specifications
The supplied dimensional data lists an 85 mm shaft diameter and inside diameter, a 120 mm outside diameter, and a 35 mm width. Additional listed measurements include a 1.5 mm minimum radius and diameters of 96.0 mm and 110.0 mm.
- Shaft / inside diameter: 85 mm
- Outside diameter: 120 mm
- Width: 35 mm
- rs min.: 1.5 mm
- Additional diameters: 96.0 mm and 110.0 mm
- Mass: 1150.0 g
What material and internal structure are specified?
The bearing material is listed as High Carbon Chrome Steel, and the internal structure is listed as Cage Type. The product introduction also describes the bearing as having high carbon steel construction and seals.
NAU4917UU Load Rating Information
The product data provides basic load ratings for the NAU4917UU. These values can be compared with the requirements of the intended equipment when selecting or replacing a bearing.
- Basic dynamic load rating: 75400 N
- Basic static load rating: 120000 N
What load values are provided for the NAU4917UU?
The supplied data lists a basic dynamic load rating of 75400 N and a basic static load rating of 120000 N. No additional performance, application, certification, or availability details are provided in the available product data.
