IKO NAU4919

IKO NAU4919 Roller Bearing Overview

The IKO NAU4919 is part of the IKO Roller Bearings series and is described as a caged roller bearing. The bearing features high carbon steel construction, with the listed bearing material specified as high carbon chrome steel, and an outer ring with oil holes.

What is the bearing configuration for the NAU4919?

The NAU4919 is identified as a roller bearing with a cage-type internal structure. Its supplied product description also notes an outer ring with oil holes and a caged roller arrangement.

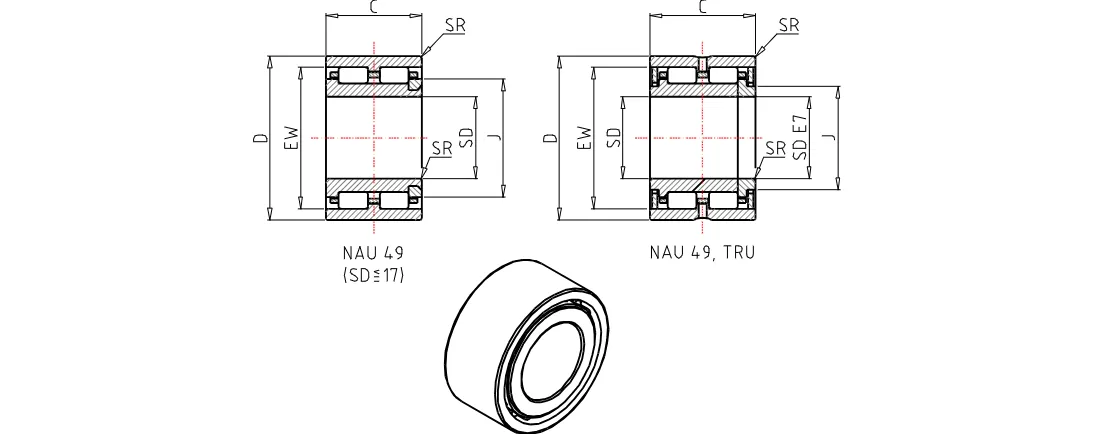

NAU4919 Dimensions and Specifications

• Model: NAU4919
• Brand: IKO
• Series: Roller Bearings
• Shaft diameter: 95 mm
• Inside diameter: 95 mm
• Outer diameter: 130 mm
• Width: 35 mm
• rs minimum: 1.5 mm
• Additional listed diameters: 106.0 mm and 120.5 mm
• Mass: 1270.0 g

What are the stated load ratings?

The supplied data lists a basic dynamic load rating of 81,000 N and a basic static load rating of 136,000 N for the IKO NAU4919.

IKO NAU4919 Product Identification

This product is classified under Brand > IKO > Roller Bearings. The order number is NAU4919, matching the model designation used in the supplied product information.

How can the supplied material and structure be summarized?

The product data identifies the NAU4919 as a roller bearing made from high carbon chrome steel, with a cage-type internal structure. These details are provided directly by the available product data and should be verified against the required specification before selection.
