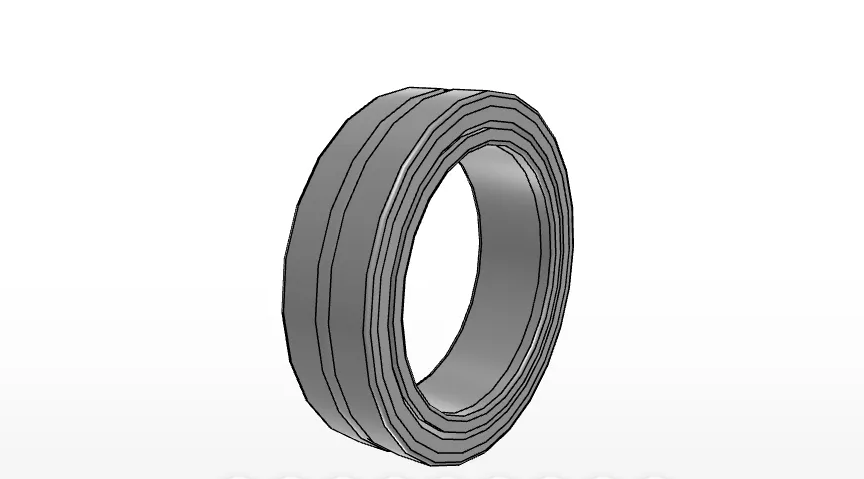

IKO NAU4919UU
Caged Roller Bearings, High Carbon Steel, Outer Ring With Oil Holes, With Seals
NAU4919UU IKO Roller Bearing Specifications

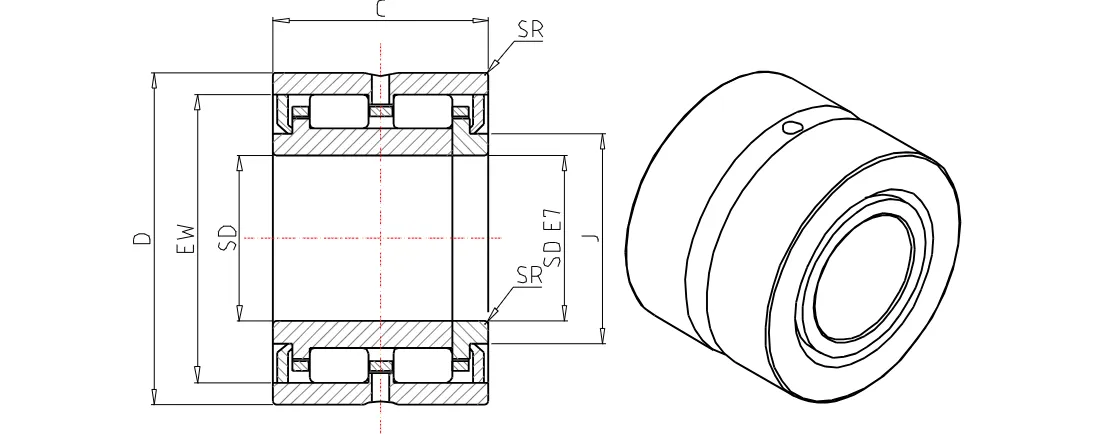

What are the basic dimensions of the NAU4919UU?
The IKO NAU4919UU is part of the Roller Bearings product series. Its listed dimensions include a shaft diameter and inside diameter of 95 mm, an outer diameter of 130 mm, and a width of 35 mm. Additional listed dimensions include a minimum fillet radius of 1.5 mm, a 106.0 mm diameter, and a 120.5 mm diameter.
- Brand: IKO
- Model: NAU4919UU
- Series: Roller Bearings
- Bore: 95 mm
- Outside diameter: 130 mm
- Width: 35 mm
Caged Roller Bearing Construction Details
What structure and material are specified for this bearing?
The supplied product data identifies the NAU4919UU as a caged roller bearing with a cage-type internal structure. The bearing material is listed as high carbon chrome steel, while the descriptive product information also refers to high carbon steel construction. The outer ring includes oil holes, and the bearing is supplied with seals.
- Bearing type: Roller Bearings
- Internal structure: Cage Type
- Material: High Carbon Chrome Steel
- Design features: Outer ring with oil holes and seals
NAU4919UU Load Rating and Mass Information
What load ratings and mass are recorded in the product data?
The NAU4919UU has a listed basic dynamic load rating of 81000 N and a basic static load rating of 136000 N. The recorded mass is 1270.0 g. These values are provided as product specification data and should be used with the complete dimensional information when evaluating the bearing for a specific arrangement.
- Basic dynamic load rating: 81000 N
- Basic static load rating: 136000 N
- Mass: 1270.0 g
