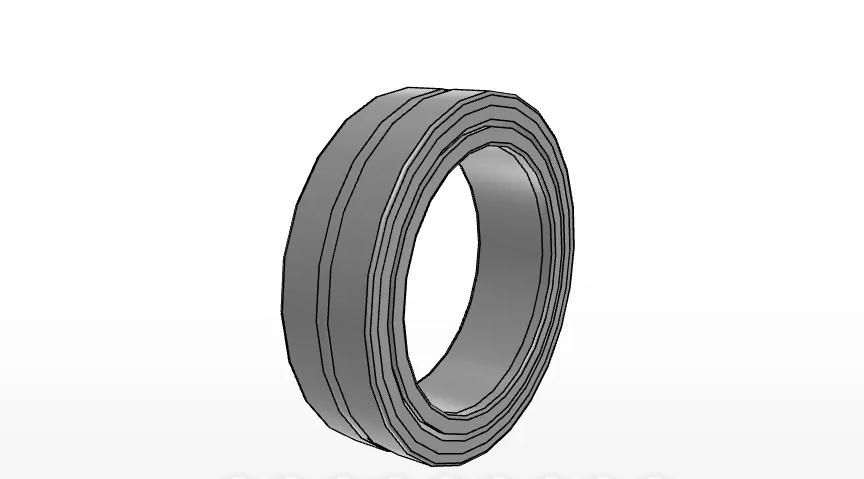

IKO NAU4924UU
Caged Roller Bearings, High Carbon Steel, Outer Ring With Oil Holes, With Seals
(BRAND)：IKO
(Availability)：In Stock
Order Number
NAU4924UU
Shaft Diameter
120
mm
Inside Diameter
120
mm
Outer Diameter
165
mm
Width
45
mm
rs min.
1.5
mm
Diameter
136.0
mm
Diameter
153.5
mm
Basic dynamic load rating
146000
N
Basic static load rating
268000
N
Mass
2680.0
g
IKO NAU4924UU Caged Roller Bearing Overview
What type of bearing is the NAU4924UU?
The IKO NAU4924UU is part of the Roller Bearings product series. Its listed internal structure is Cage Type, and the product detail describes it as a caged roller bearing with an outer ring that has oil holes and seals.
- Brand: IKO
- Model / Order Number: NAU4924UU
- Bearing Type: Roller Bearings
- Internal Structure: Cage Type

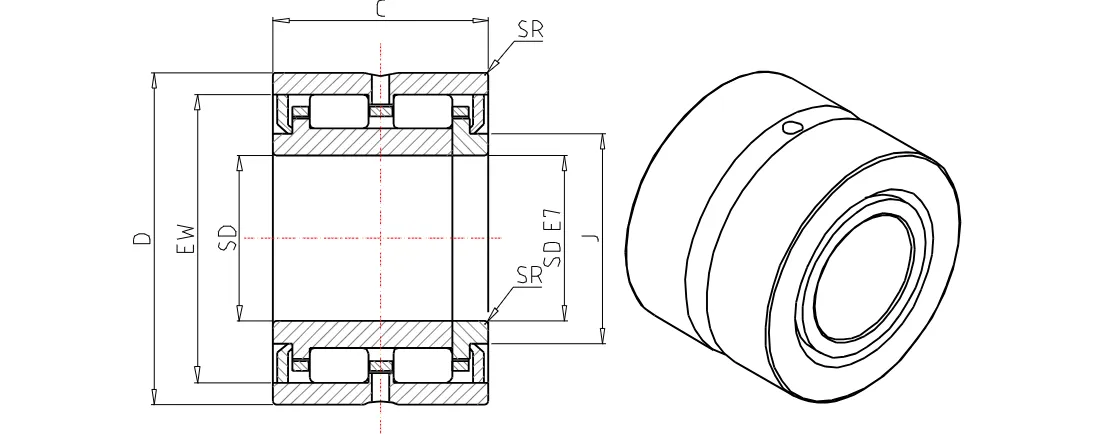

NAU4924UU Dimensions and Material Specifications
What dimensions and material are listed for this bearing?
The supplied data lists the following measurements for the NAU4924UU:
- Shaft diameter / inside diameter: 120 mm
- Outside diameter: 165 mm
- Width: 45 mm
- rs min.: 1.5 mm
- Additional diameters: 136.0 mm and 153.5 mm
- Mass: 2680.0 g
The bearing material is listed as High Carbon Chrome Steel; the product detail also identifies the material as high carbon steel.
NAU4924UU Load Rating and Design Details
What load ratings and construction features are provided?
The supplied product data lists a basic dynamic load rating of 146000 N and a basic static load rating of 268000 N. The design includes seals and an outer ring with oil holes. These details are based only on the provided product information.
- Basic dynamic load rating: 146000 N
- Basic static load rating: 268000 N
- Outer ring feature: Oil holes
- Sealing feature: With seals
