IKO NAU4926UU
Caged Roller Bearings, High Carbon Steel, Outer Ring With Oil Holes, With Seals

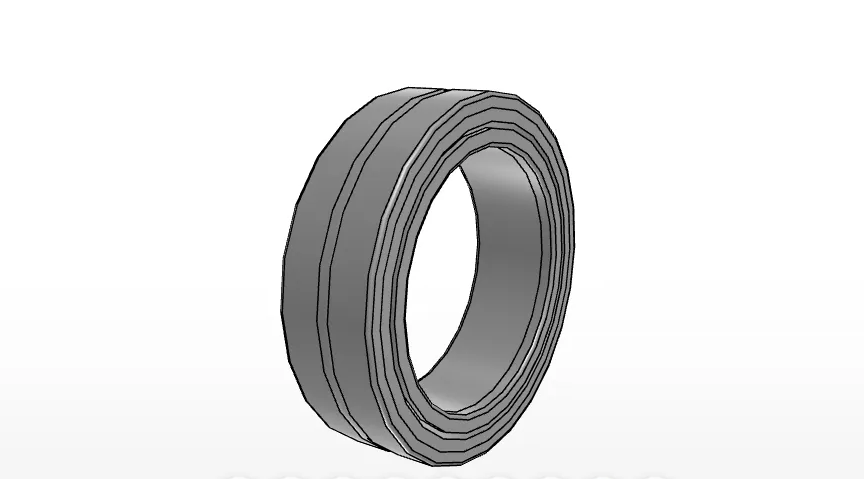

IKO NAU4926UU Caged Roller Bearing Introduction
The NAU4926UU is an IKO roller bearing in the Roller Bearings product series. It features a caged internal structure, high carbon chrome steel construction, an outer ring with oil holes, and seals.
What are the basic identifying details of this bearing?
The order number is NAU4926UU, the brand is IKO, and the listed bearing type is Roller Bearings. Its internal structure is specified as Cage Type.

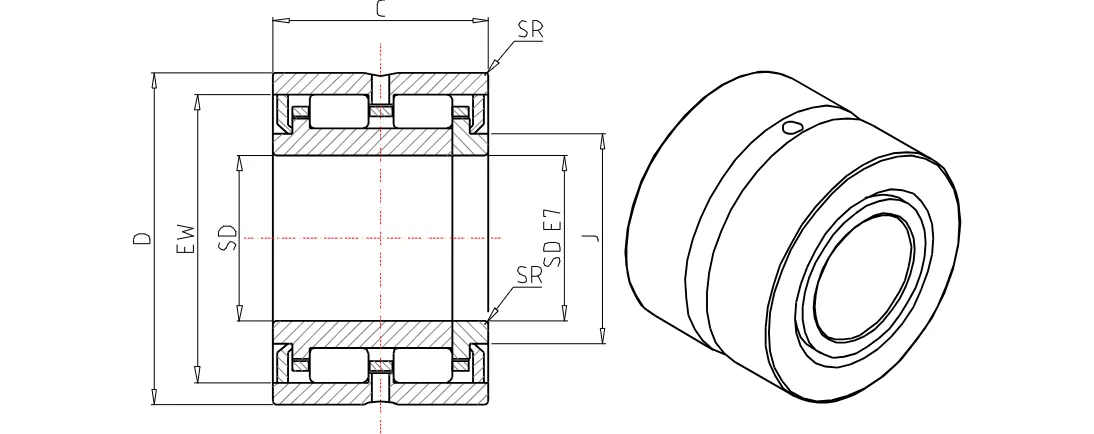

NAU4926UU Dimensions and Measured Data
The bearing dimensions and related measurements are provided in the product data for selection and dimensional comparison.
- Shaft diameter: 130 mm
- Inside diameter: 130 mm
- Outer diameter: 180 mm
- Width: 50 mm
- rs min.: 2.0 mm
- Diameter values: 147.0 mm and 165.5 mm
- Mass: 3610.0 g
What bore, outer diameter, and width should be used for reference?
The listed inside diameter is 130 mm, the outer diameter is 180 mm, and the width is 50 mm. These dimensions should be checked against the mating assembly requirements.
NAU4926UU Construction and Load Rating Details
The NAU4926UU uses high carbon chrome steel and includes a cage-type internal structure. The product description also identifies seals and an outer ring with oil holes.
What load ratings and material information are supplied?
The listed basic dynamic load rating is 166000 N, and the basic static load rating is 304000 N. The bearing material is listed as High Carbon Chrome Steel, also described as high carbon steel in the product title information.
