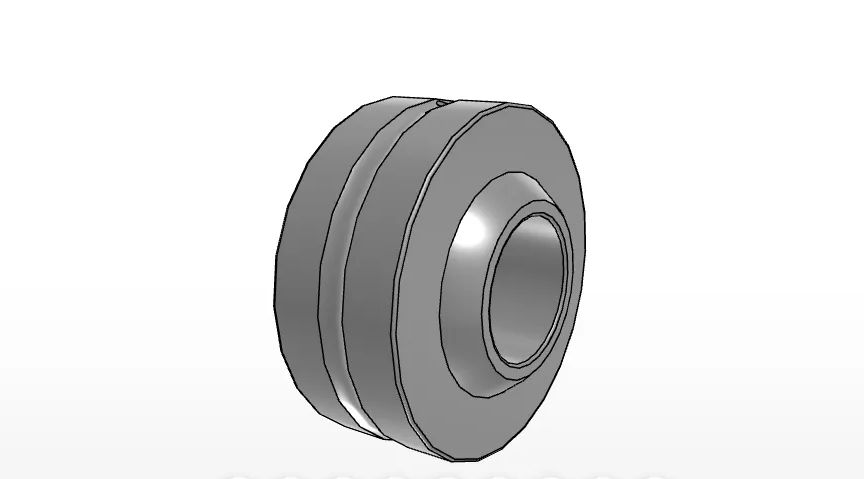

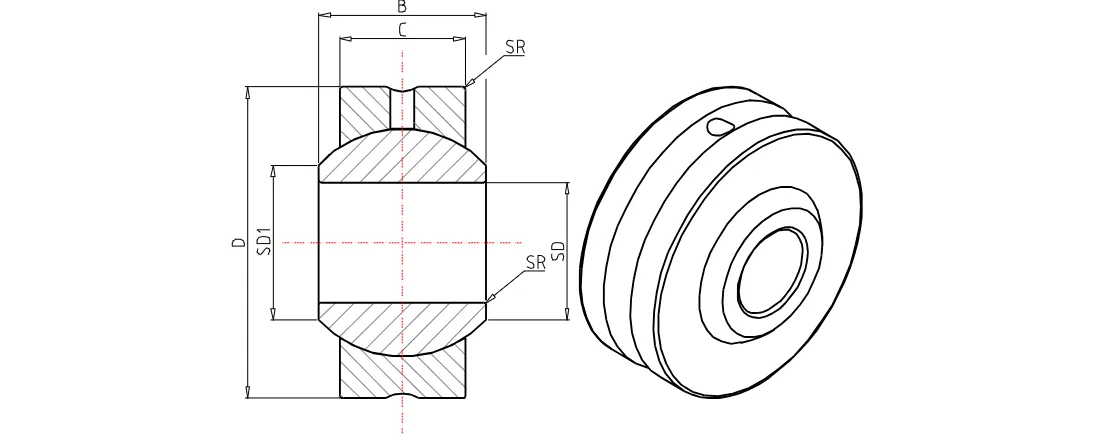

IKO PB14
Spherical Bushing Pilloball, Insert Type/ Lubrication Type , High Carbon Steel
(BRAND)：IKO
(Availability)：In Stock
Order Number
PB14
Inside Diameter
14
mm
Outer Diameter
34
mm
Width
13.50
mm
Width of innerring
19
mm
Diameter
16.9
mm
rs min.
0.3
mm
Diameter of Ball
25.40
mm
Dynamic load capacity
16800
N
Static load capacity
40400
N
Mass
84.0
g
