IKO PB18
Spherical Bushing Pilloball, Insert Type/ Lubrication Type , High Carbon Steel
(BRAND)：IKO
(Availability)：In Stock
Order Number
PB18
Inside Diameter
18
mm
Outer Diameter
42
mm
Width
16.50
mm
Width of innerring
23
mm
Diameter
21.9
mm
rs min.
0.3
mm
Diameter of Ball
31.75
mm
Dynamic load capacity
25700
N
Static load capacity
61600
N
Mass
160.0
g
IKO PB18 Rod End Supports Rod End Applications
The IKO PB18 is part of the IKO Rod Ends series and is listed as a spherical bushing pilloball, insert type and lubrication type. Its stated bearing material is high carbon steel.
What bearing type and material are specified for the PB18?
The PB18 is categorized as a rod end and a spherical bushing pilloball. The supplied product data identifies its bearing material as high carbon steel.

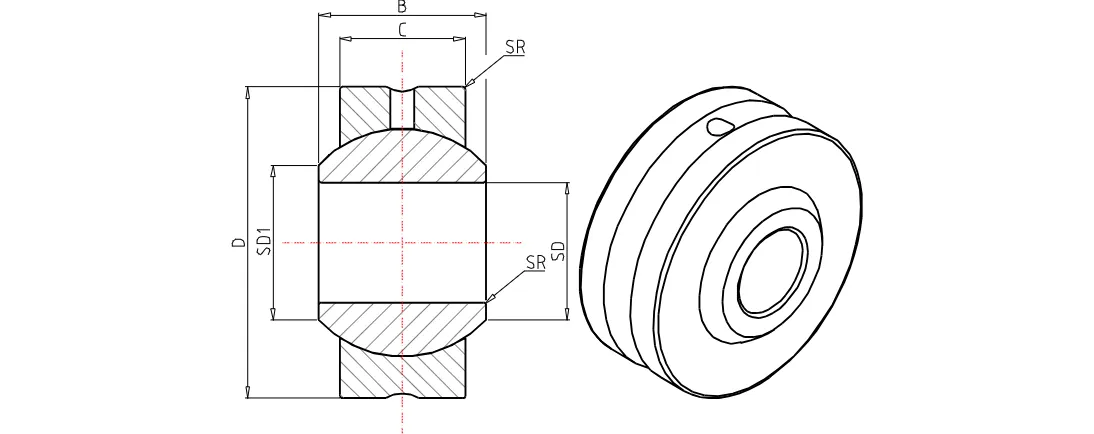

PB18 Dimensions and Weight Are Documented for Selection
The PB18 has an inside diameter of 18 mm, outer diameter of 42 mm, width of 16.50 mm, and inner ring width of 23 mm. Additional dimensions include a 21.9 mm diameter, 0.3 mm minimum rs, and 31.75 mm ball diameter.
What are the listed PB18 measurements?
- Inside diameter: 18 mm
- Outer diameter: 42 mm
- Width: 16.50 mm
- Inner ring width: 23 mm
- Diameter: 21.9 mm
- rs minimum: 0.3 mm
- Ball diameter: 31.75 mm
- Mass: 160.0 g
PB18 Load Capacity Values Are Included in the Product Data
The supplied data lists a dynamic load capacity of 25700 N and a static load capacity of 61600 N. These values can be compared with the rod end requirements for the intended assembly.
What load capacities are stated for the IKO PB18?
- Dynamic load capacity: 25700 N
- Static load capacity: 61600 N
