IKO PB20
Spherical Bushing Pilloball, Insert Type/ Lubrication Type , High Carbon Steel
(BRAND)：IKO
(Availability)：In Stock
Order Number
PB20
Inside Diameter
20
mm
Outer Diameter
46
mm
Width
18.00
mm
Width of innerring
25
mm
Diameter
24.4
mm
rs min.
0.3
mm
Diameter of Ball
34.93
mm
Dynamic load capacity
30800
N
Static load capacity
74000
N
Mass
210.0
g

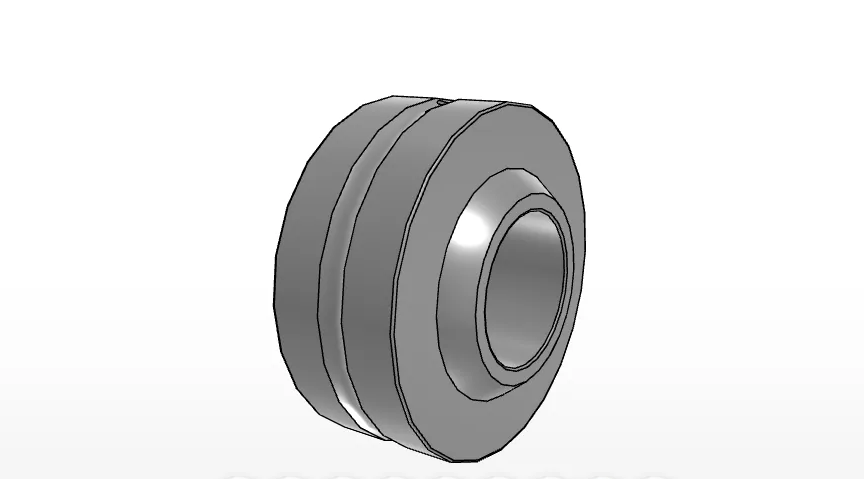

IKO PB20 Rod End Spherical Bushing
What is the PB20?
The PB20 is an IKO rod end within the Rod Ends series. The supplied data identifies it as a spherical bushing Pilloball, insert type and lubrication type, made from high carbon steel.
- Brand: IKO
- Model: PB20
- Series: Rod Ends
- Bearing material: High Carbon Steel

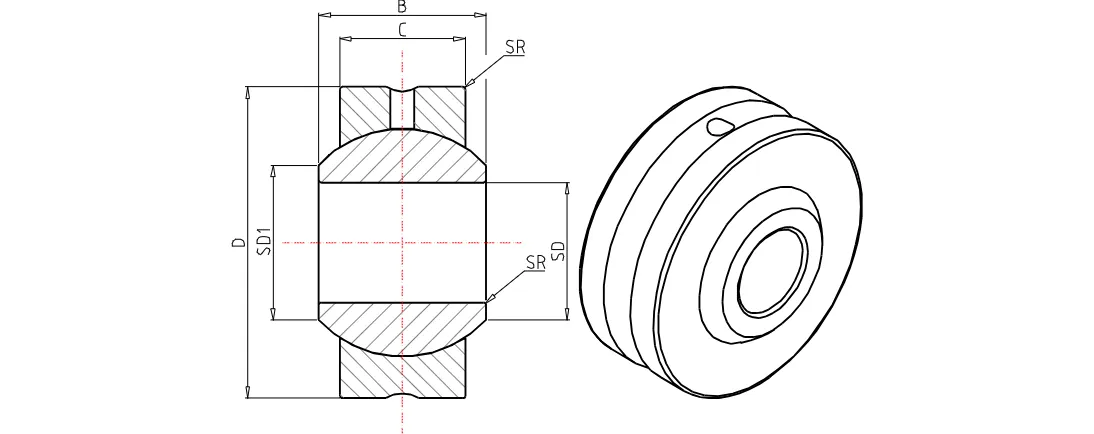

PB20 Dimensions and Product Data
What dimensions are listed for the PB20?
The provided product data lists the following measurements for the PB20:
- Inside diameter: 20 mm
- Outer diameter: 46 mm
- Width: 18.00 mm
- Inner ring width: 25 mm
- Diameter: 24.4 mm
- rs minimum: 0.3 mm
- Ball diameter: 34.93 mm
- Mass: 210.0 g
PB20 Load Ratings and Specification Summary
What load capacities are provided for the PB20?
The supplied data identifies the PB20 with a dynamic load capacity of 30800 N and a static load capacity of 74000 N. These values should be used as the listed specifications for the bearing.
- Bearing type: Rod Ends
- Construction: Spherical Bushing Pilloball, insert type/lubrication type
- Material: High Carbon Steel
- Category path: Brand > IKO > Rod Ends
