IKO PB22
Spherical Bushing Pilloball, Insert Type/ Lubrication Type , High Carbon Steel
(BRAND)：IKO
(Availability)：In Stock
Order Number
PB22
Inside Diameter
22
mm
Outer Diameter
50
mm
Width
20.00
mm
Width of innerring
28
mm
Diameter
25.8
mm
rs min.
0.3
mm
Diameter of Ball
38.10
mm
Dynamic load capacity
37400
N
Static load capacity
89700
N
Mass
265.0
g

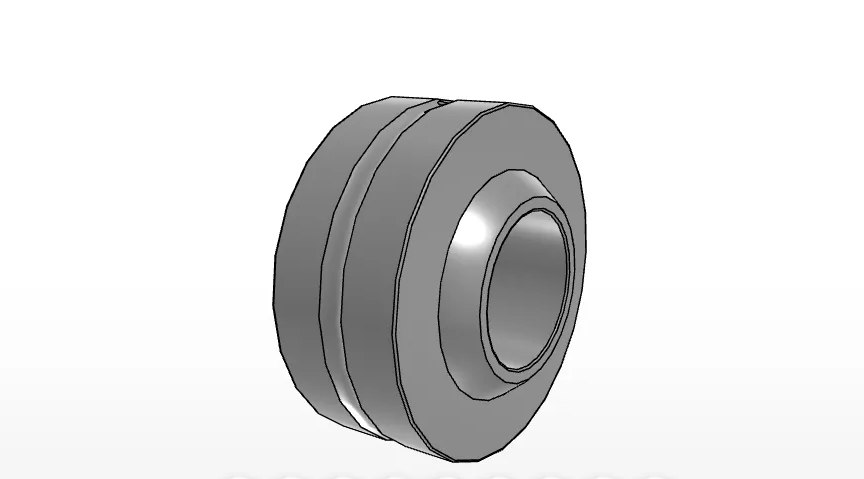

IKO PB22 Rod End Spherical Bushing
The PB22 is an IKO Rod Ends series spherical bushing pilloball. The supplied product data identifies it as an insert type and lubrication type component made of high carbon steel.
What is the PB22 model?
The PB22 is listed under Brand > IKO > Rod Ends. Its order number is PB22, and its bearing type is Rod Ends.

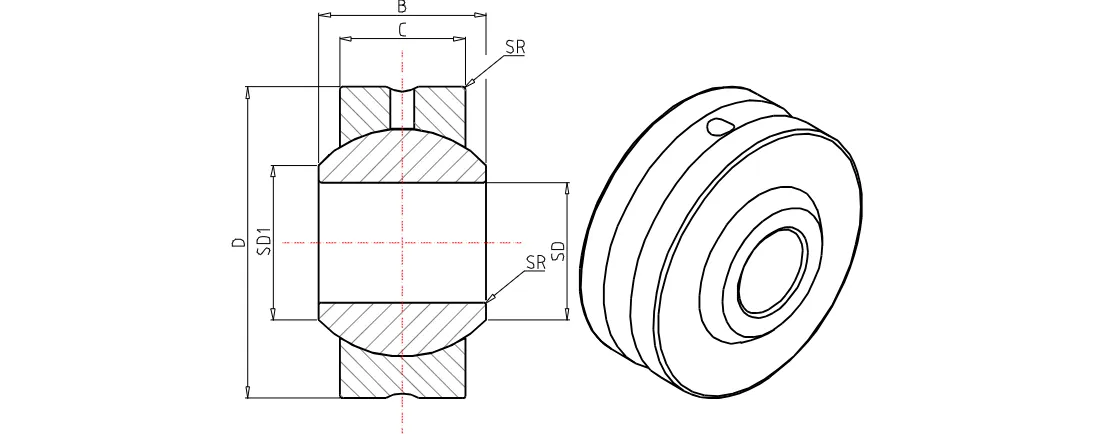

PB22 Dimensions and Specifications
- Inside diameter: 22 mm
- Outer diameter: 50 mm
- Width: 20.00 mm
- Inner ring width: 28 mm
- Diameter: 25.8 mm
- rs min.: 0.3 mm
- Ball diameter: 38.10 mm
- Mass: 265.0 g
What material is specified for the PB22?
The supplied data lists the bearing material as high carbon steel.
PB22 Load Capacity Data
The PB22 rod end spherical bushing has a stated dynamic load capacity of 37400 N and a static load capacity of 89700 N. These values should be used with the listed dimensions for product identification and selection.
What load capacities are provided for the PB22?
- Dynamic load capacity: 37400 N
- Static load capacity: 89700 N
