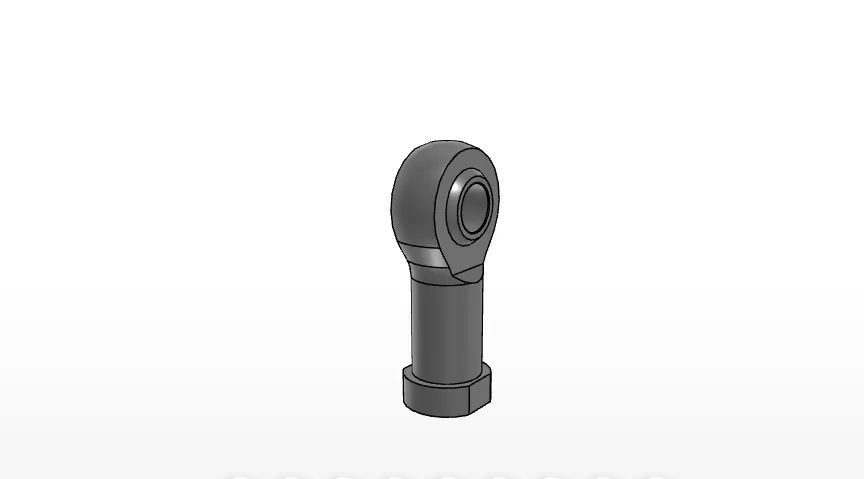

IKO PHS10A
Rod End, Metric, Insert Type, Female Thread (Right Handed)
(BRAND)：IKO
(Availability)：In Stock
Order Number
PHS10A
Inside Diameter
10
mm
Thread
M10x1.5
Diameter
26
mm
Width
10.5
mm
Width of innerring
14
mm
Diameter
12.9
mm
Total Lenght
56
mm
Dimension
43
mm
Length
21
mm
Dimension
6.5
mm
Width
17.0
mm
Diameter
15.0
mm
Diameter
19.0
mm
r1s min
0.2
mm
Diameter of Ball
19.050
mm
Dynamic load capacity
9810
N
Static load capacity
13300
N
Mass
72.0
g
