IKO PHS10EC

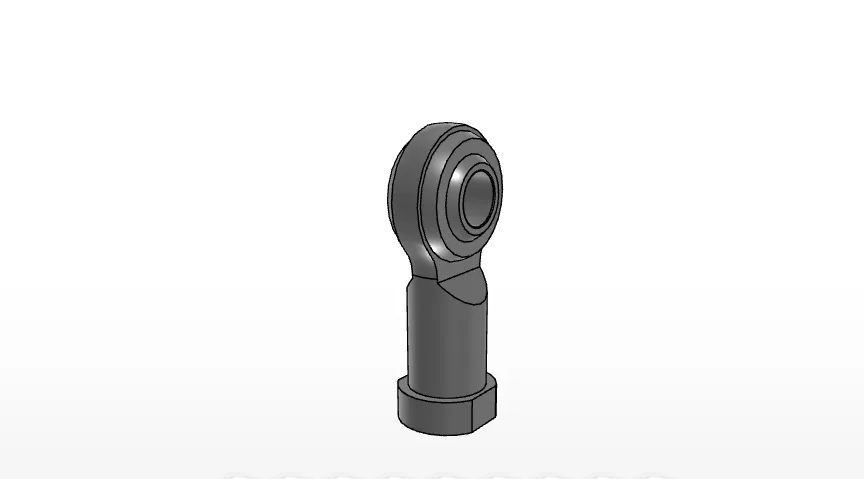

Rod End, Metric, Female Thread, Maintenance Free Type (Right Handed)
(BRAND)：IKO
(Availability)：In Stock
Order Number
PHS10EC
Inside Diameter
10
mm
Thread
M10x1.5
Diameter
26
mm
Width
10.50
mm
Width of innerring
14
mm
Diameter
12.9
mm
Total Lenght
56
mm

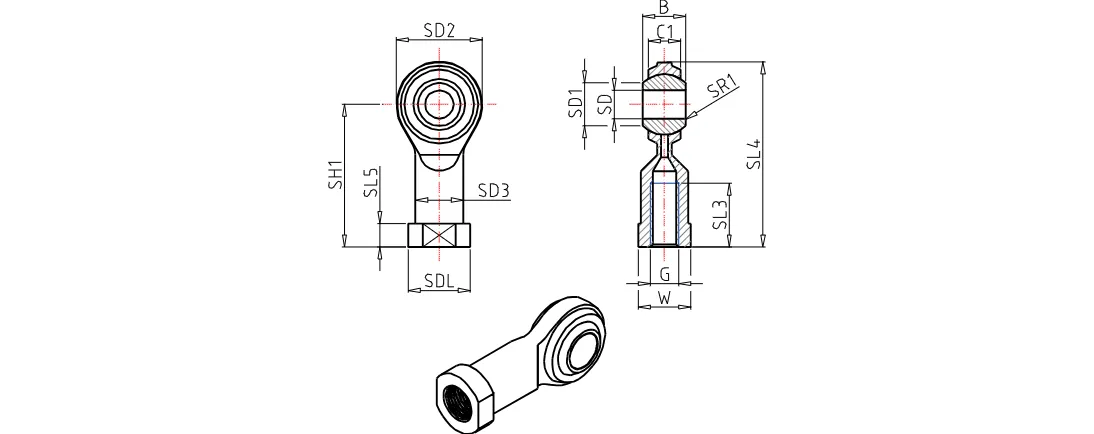

Dimension
43
mm
Length
19.5
mm
Dimension
6.5
mm
Width
17.0
mm
Diameter
15.0
mm
Diameter
19.0
mm
r1s min
0.2
mm
Diameter of Ball
19.050
mm
Dynamic load capacity
19600
N
Static load capacity
10500
N
Mass
72.0
g
