IKO PHS12A

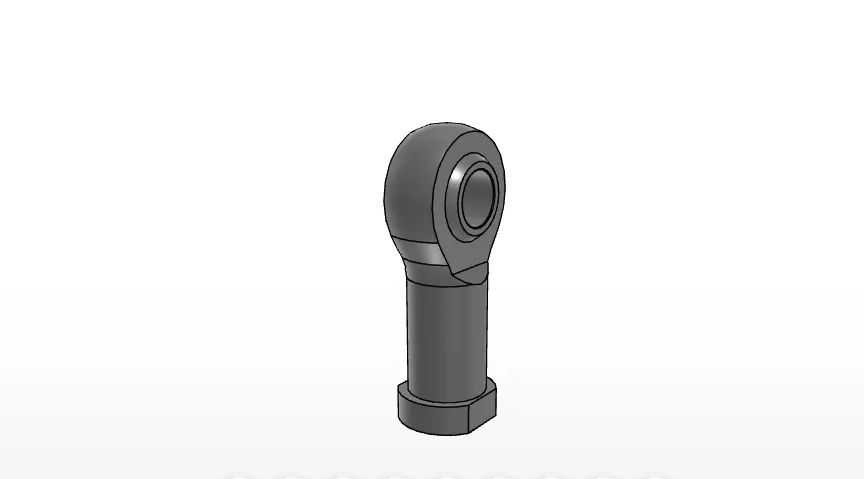

Rod End, Metric, Insert Type, Female Thread (Right Handed)
(BRAND)：IKO
(Availability)：In Stock
Order Number
PHS12A
Inside Diameter
12
mm
Thread
M12x1.75
Diameter
30
mm
Width
12.0
mm
Width of innerring
16
mm
Diameter
15.4
mm
Total Lenght
65
mm
Dimension
50
mm
Length
24
mm
Dimension
6.5
mm
Width
19.0
mm
Diameter
17.5
mm
Diameter
22.0
mm
r1s min
0.2
mm
Diameter of Ball
22.225
mm
Dynamic load capacity
13100
N
Static load capacity
16900
N
Mass
107.0
g
