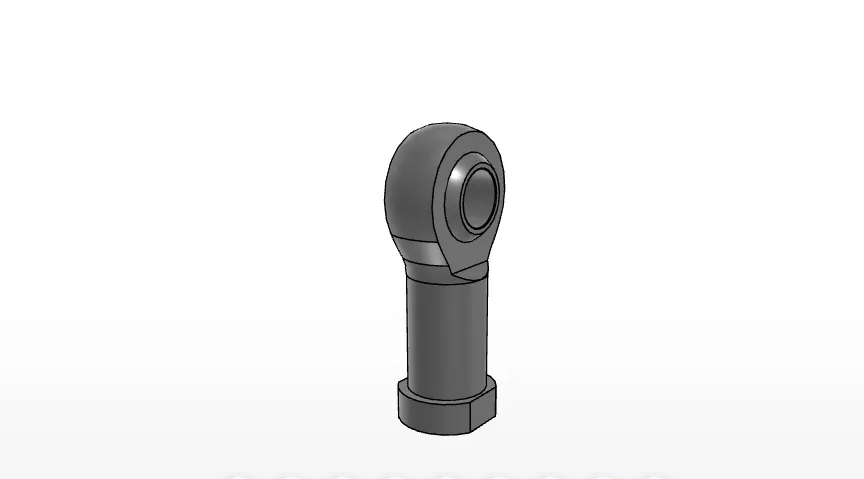

IKO PHS14A
Rod End, Metric, Insert Type, Female Thread (Right Handed)
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
PHS14A
Inside Diameter
14
mm
Thread
M14x2
Diameter
34
mm
Width
13.5
mm
Width of innerring
19
mm
Diameter
16.9
mm
Total Lenght
74
mm
Dimension
57
mm
Length
27
mm
Dimension
8.0
mm
Width
22.0
mm
Diameter
20.0
mm
Diameter
25.0
mm
r1s min
0.2
mm
Diameter of Ball
25.400
mm
Dynamic load capacity
16800
N
Static load capacity
20900
N
Mass
160.0
g
