IKO PHS14ECL
Rod End, Metric, Female Thread, Maintenance Free Type (Left Handed)

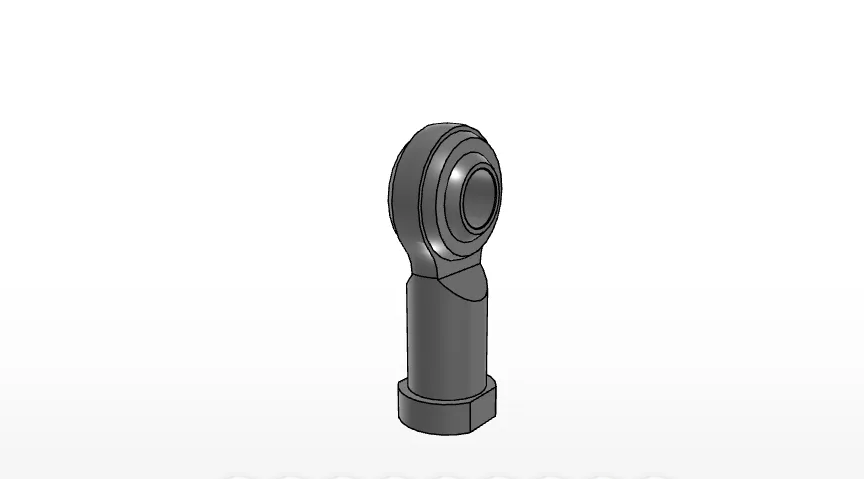

The IKO PHS14ECL Is a Metric Female-Thread Rod End
The PHS14ECL is an IKO Rod End with a metric female thread and a left-handed thread arrangement. The supplied product title identifies it as a maintenance-free type, suitable for consideration where a rod end with these listed specifications is required.
What basic product identification is provided for the PHS14ECL?
- Brand: IKO
- Series: Rod Ends
- Order number: PHS14EC
- Model: PHS14ECL
- Bearing type: Rod End
The PHS14ECL Offers Listed Metric Dimensions and Load Data

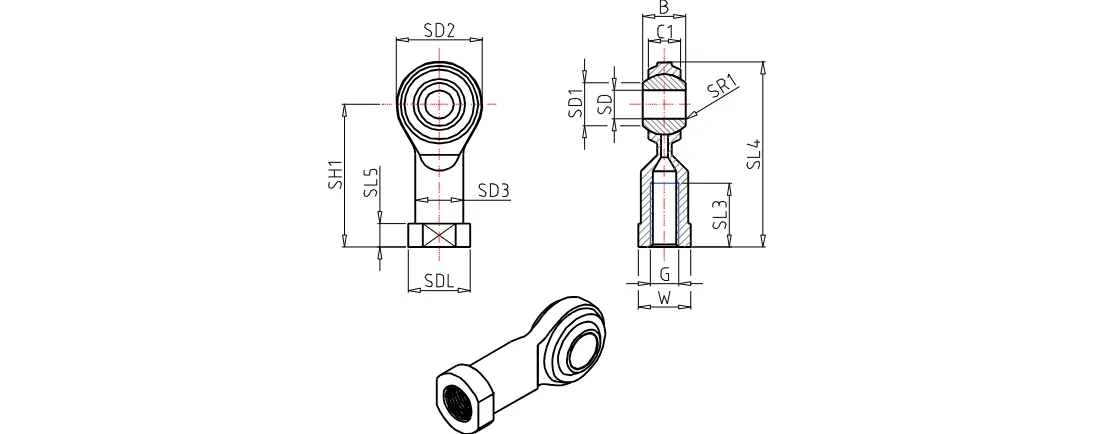

This rod end has an inside diameter of 14 mm and an M14x2 female thread. Additional supplied dimensions include a 34 mm diameter, 13.50 mm width, 19 mm inner-ring width, 16.9 mm diameter, 74 mm total length, and 25.400 mm ball diameter. The listed dynamic load capacity is 33600 N, and the static load capacity is 17200 N.
What dimensional details are available for selection review?
- Inside diameter: 14 mm
- Thread: M14x2, left hand
- Diameter: 34 mm
- Width: 13.50 mm
- Inner-ring width: 19 mm
- Total length: 74 mm
- Ball diameter: 25.400 mm
- r1s minimum: 0.2 mm
- Mass: 160.0 g
The PHS14ECL Is Documented as a Maintenance-Free Left-Hand Rod End
The product information describes the PHS14ECL as a metric rod end with female thread and maintenance-free type. Its supplied measurements can be compared directly with the required installation envelope, including the 57 mm dimension, 27.0 mm length, 8.0 mm dimension, 22.0 mm width, and 20.0 mm and 25.0 mm diameter values listed in the data.
Which additional supplied specifications should be checked before ordering?
- Confirm the M14x2 left-hand female thread matches the mating component.
- Verify the 14 mm inside diameter and listed rod-end dimensions fit the assembly.
- Review the stated 33600 N dynamic and 17200 N static load values against the requirement.
- Use the recorded 160.0 g mass and category path Brand > IKO > Rod Ends for product identification.
