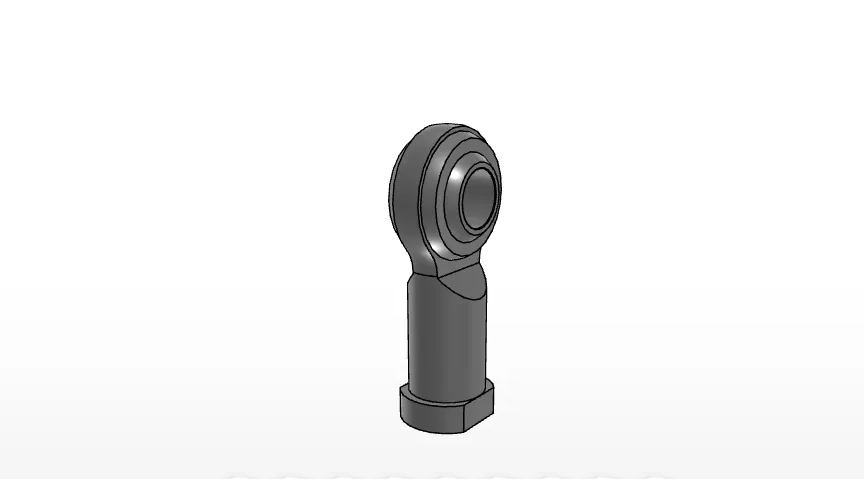

IKO PHS16ECL
Rod End, Metric, Female Thread, Maintenance Free Type (Left Handed)
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
PHS16EC
Inside Diameter
16
mm
Thread
M16x2
Diameter
38
mm
Width
15.00
mm
Width of innerring
21
mm
Diameter
19.4
mm
Total Lenght
83
mm

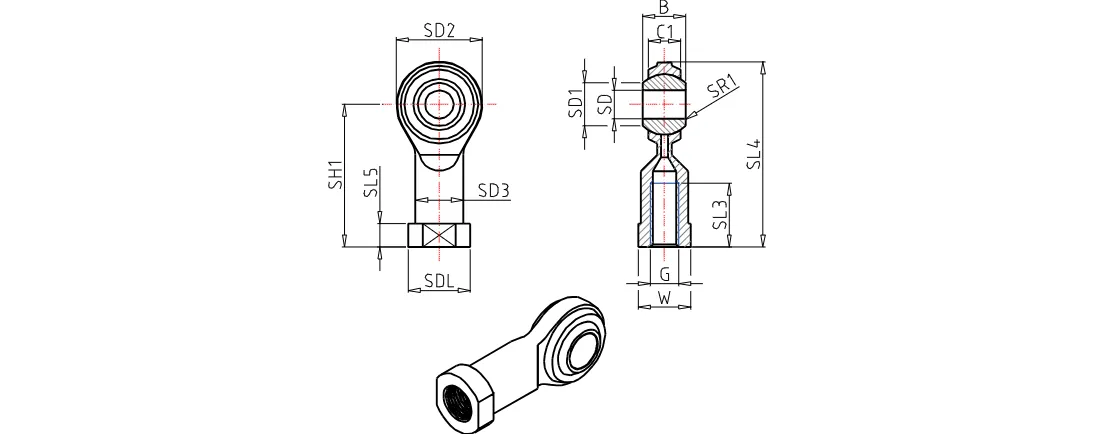

Dimension
64
mm
Length
33.0
mm
Dimension
8.0
mm
Width
22.0
mm
Diameter
22.0
mm
Diameter
27.0
mm
r1s min
0.2
mm
Diameter of Ball
28.575
mm
Dynamic load capacity
42000
N
Static load capacity
21100
N
Mass
210.0
g
