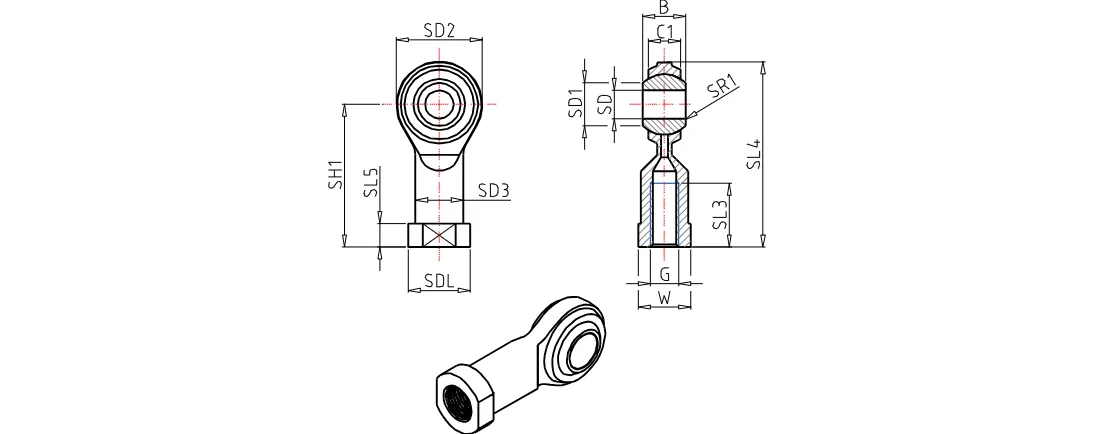

IKO PHS18EC
Rod End, Metric, Female Thread, Maintenance Free Type (Right Handed)
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
PHS18EC
Inside Diameter
18
mm
Thread
M18x1.5
Diameter
42
mm
Width
16.50
mm
Width of innerring
23
mm
Diameter
21.9
mm
Total Lenght
92
mm
Dimension
71
mm
Length
36.0
mm
Dimension
10.0
mm
Width
27.0
mm
Diameter
25.0
mm
Diameter
31.0
mm
r1s min
0.2
mm
Diameter of Ball
31.750
mm
Dynamic load capacity
51400
N
Static load capacity
25100
N
Mass
295.0
g
