IKO PHS18ECL
Rod End, Metric, Female Thread, Maintenance Free Type (Left Handed)

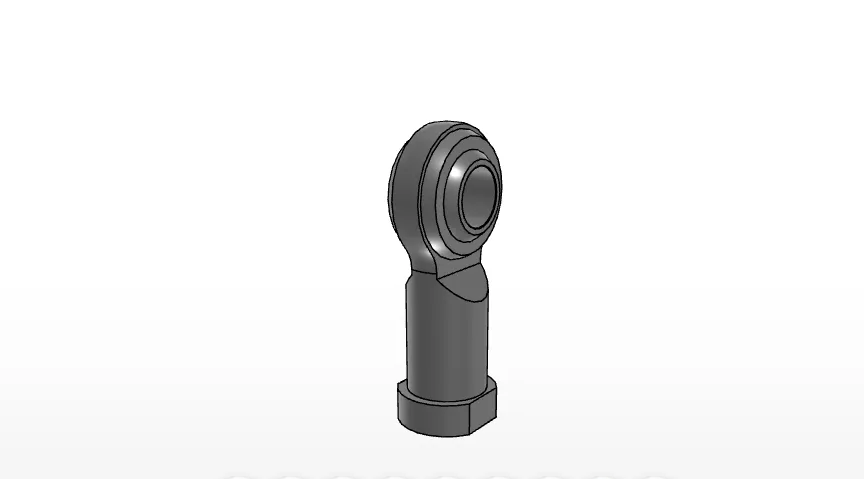

The PHS18ECL Is an IKO Rod End
The PHS18ECL is an IKO Rod Ends product listed under Brand > IKO > Rod Ends. It is described as a metric rod end with female thread and a maintenance-free type, left-handed configuration.
What type of product is the PHS18ECL?
The supplied data identifies the PHS18ECL as a rod end. Its title description specifies metric sizing, female thread, maintenance-free type, and a left-handed thread arrangement.

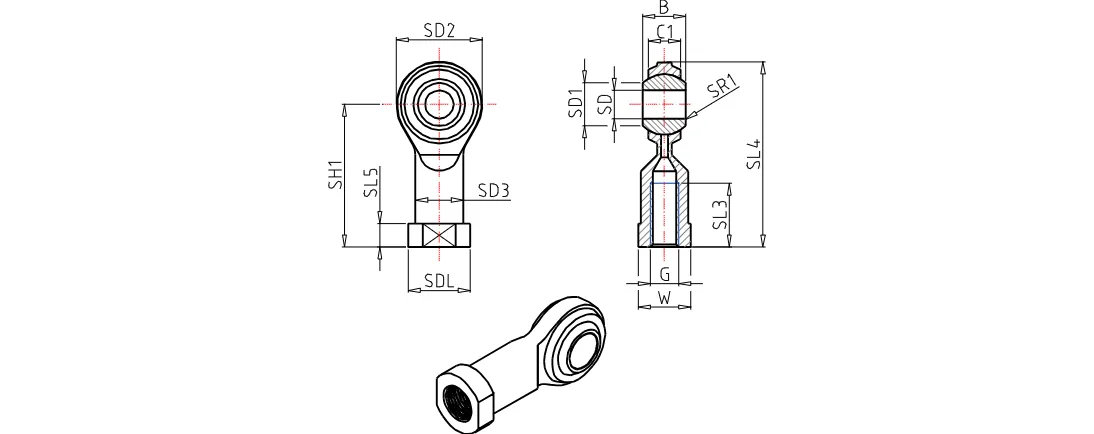

The PHS18ECL Has Defined Metric Dimensions
The PHS18ECL has an inside diameter of 18 mm and an M18x1.5 female thread. Additional supplied dimensions include a 42 mm diameter, 16.50 mm width, 23 mm inner-ring width, 21.9 mm diameter, and 92 mm total length.
What other dimensions are provided for this rod end?
The product data also lists a 71 mm dimension, 36.0 mm length, 10.0 mm dimension, 27.0 mm width, 25.0 mm diameter, 31.0 mm diameter, r1s minimum of 0.2 mm, and ball diameter of 31.750 mm.
The PHS18ECL Includes Load and Mass Specifications
The supplied product data lists a dynamic load capacity of 51400 N, a static load capacity of 25100 N, and a mass of 295.0 g. These values can be checked against the required rod-end specification before selection.
What load and mass information is available?
- Dynamic load capacity: 51400 N
- Static load capacity: 25100 N
- Mass: 295.0 g
