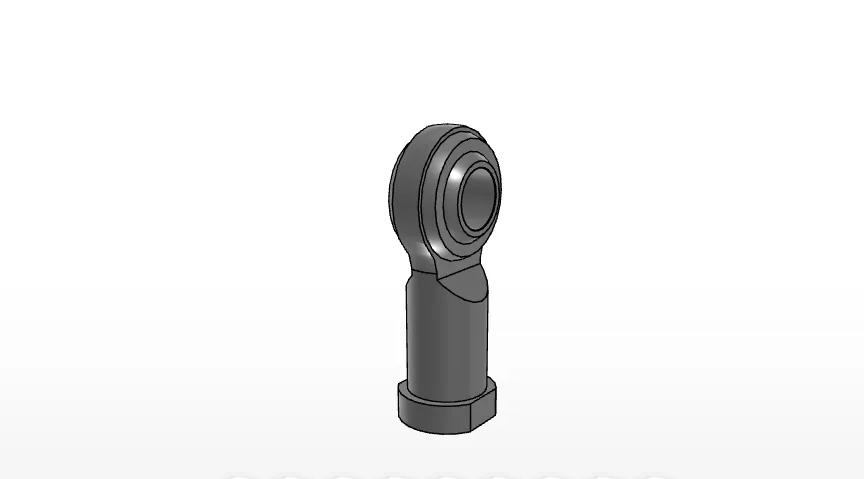

IKO PHS20EC
Rod End, Metric, Female Thread, Maintenance Free Type (Right Handed)
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
PHS20EC
Inside Diameter
20
mm
Thread
M20x1.5
Diameter
46
mm
Width
18.00
mm
Width of innerring
25
mm
Diameter
24.4
mm
Total Lenght
100
mm

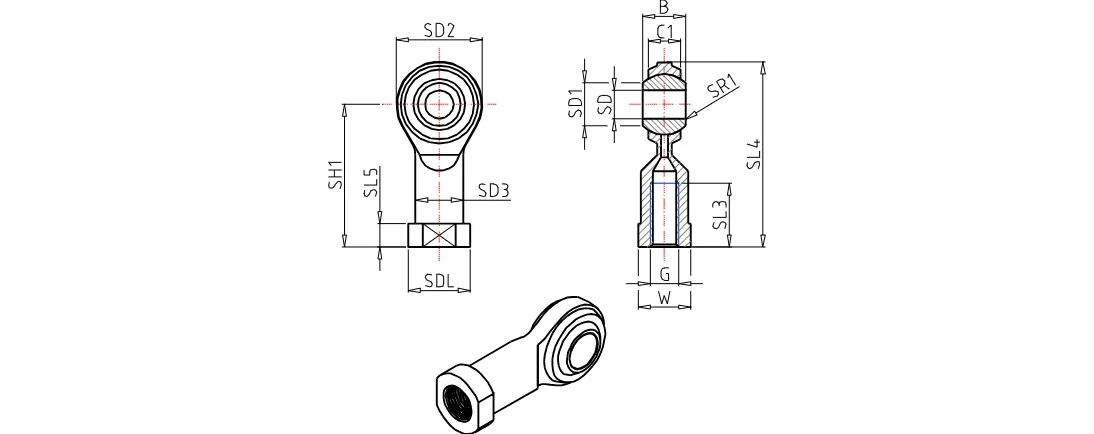

Dimension
77
mm
Length
40.0
mm
Dimension
10.0
mm
Width
30.0
mm
Diameter
27.5
mm
Diameter
34.0
mm
r1s min
0.2
mm
Diameter of Ball
34.925
mm
Dynamic load capacity
61600
N
Static load capacity
30000
N
Mass
380.0
g
