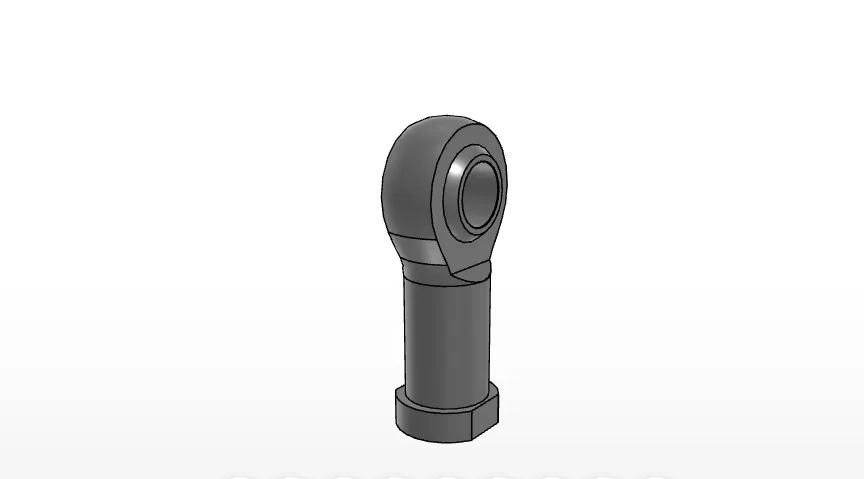

IKO PHS20L
Rod End, Metric, Insert Type, Female Thread (Left Handed)
(BRAND)：IKO
(Availability)：In Stock
Order Number
PHS20
Inside Diameter
20
mm
Thread
M20x1.5
Diameter
46
mm
Width
18.0
mm
Width of innerring
25
mm
Diameter
24.4
mm
Total Lenght
100
mm
Dimension
77
mm
Length
40
mm
Dimension
10.0
mm
Width
30.0
mm
Diameter
27.5
mm
Diameter
34.0
mm
r1s min
0.2
mm
Diameter of Ball
34.925
mm
Dynamic load capacity
30800
N
Static load capacity
35500
N
Mass
380.0
g
PHS20L IKO Rod End Specification
What type of rod end is the PHS20L?
The PHS20L is an IKO rod end in the Rod Ends product series. The supplied data identifies it as a metric, insert-type rod end with female thread and left-hand thread orientation.
- Order number: PHS20L
- Brand: IKO
- Bearing type: Rod Ends
- Thread: M20x1.5, female, left handed
- Inside diameter: 20 mm
PHS20L Dimension and Mass Details
What dimensions are provided for the PHS20L?
The product data lists the following dimensional values for the PHS20L. Dimensions should be checked against the required assembly configuration before selection.
- Diameter: 46 mm
- Width: 18.0 mm
- Width of inner ring: 25 mm
- Diameter: 24.4 mm
- Total length: 100 mm
- Dimension: 77 mm
- Length: 40 mm
- Dimension: 10.0 mm
- Width: 30.0 mm
- Diameter: 27.5 mm
- Diameter: 34.0 mm
- r1s min: 0.2 mm
- Diameter of ball: 34.925 mm
- Mass: 380.0 g
PHS20L Load Capacity Data
What load ratings are stated for the PHS20L?
The supplied product data records a dynamic load capacity of 30800 N and a static load capacity of 35500 N. These values are presented as product data rather than suitability recommendations.
- Dynamic load capacity: 30800 N
- Static load capacity: 35500 N
