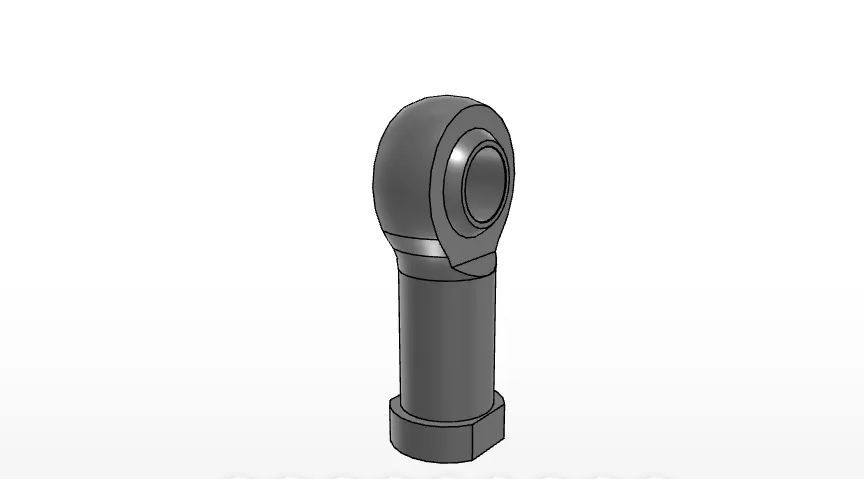

IKO PHS22
Rod End, Metric, Insert Type, Female Thread (Right Handed)
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
PHS22
Inside Diameter
22
mm
Thread
M22x1.5
Diameter
50
mm
Width
20.0
mm
Width of innerring
28
mm
Diameter
25.8
mm
Total Lenght
109
mm
Dimension
84
mm
Length
43
mm
Dimension
12.0
mm
Width
32.0
mm
Diameter
30.0
mm
Diameter
37.0
mm
r1s min
0.2
mm
Diameter of Ball
38.100
mm
Dynamic load capacity
37400
N
Static load capacity
41700
N
Mass
490.0
g
