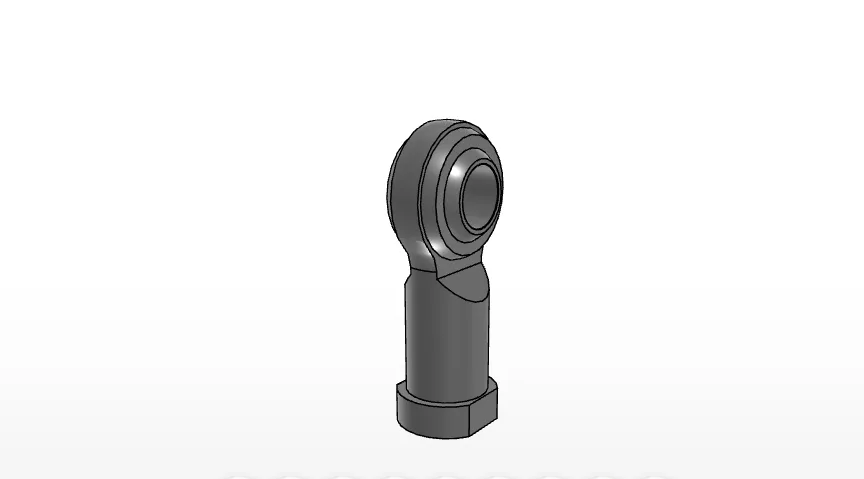

IKO PHS22EC
Rod End, Metric, Female Thread, Maintenance Free Type (Right Handed)
(BRAND)：IKO
(Availability)：In Stock
Order Number
PHS22EC
Inside Diameter
22
mm
Thread
M22x1.5
Diameter
50
mm
Width
20.00
mm
Width of innerring
28
mm
Diameter
25.8
mm
Total Lenght
109
mm
Dimension
84
mm
Length
41.0
mm
Dimension
12.0
mm
Width
32.0
mm
Diameter
30.0
mm
Diameter
37.0
mm
r1s min
0.2
mm
Diameter of Ball
38.100
mm
Dynamic load capacity
74700
N
Static load capacity
36400
N
Mass
490.0
g
