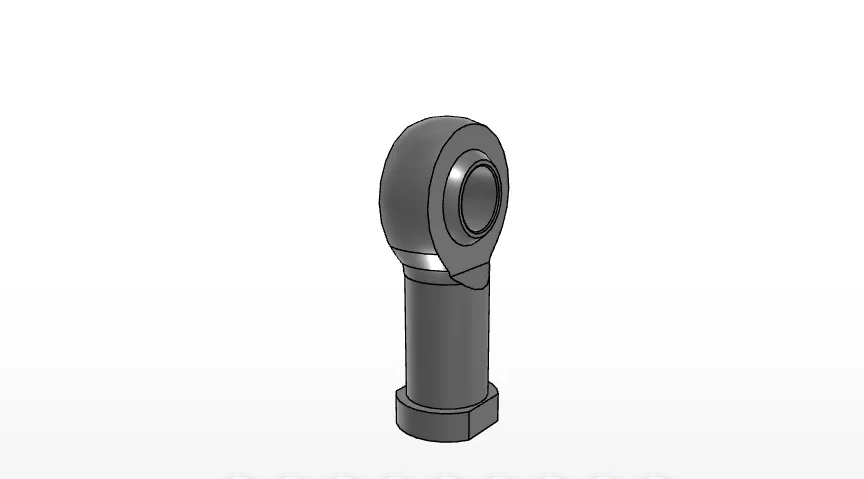

IKO PHS25
Rod End, Metric, Insert Type, Female Thread (Right Handed)
(BRAND)：IKO
(Availability)：In Stock
Order Number
PHS25
Inside Diameter
25
mm
Thread
M24x2
Diameter
60
mm
Width
22.0
mm
Width of innerring
31
mm
Diameter
29.6
mm
Total Lenght
124
mm
Dimension
94
mm
Length
48
mm
Dimension
12.0
mm
Width
36.0
mm
Diameter
33.5
mm
Diameter
42.0
mm
r1s min
0.6
mm
Diameter of Ball
42.862
mm
Dynamic load capacity
46200
N
Static load capacity
72700
N
Mass
750.0
g
IKO PHS25 Rod End for Metric Rod End Requirements
What is the PHS25?
The PHS25 is an IKO Rod Ends product listed as a metric, insert-type rod end with female right-hand thread. The order number is PHS25, and the bearing type is rod end.
- Brand: IKO
- Product series: Rod Ends
- Category: Brand > IKO > Rod Ends
- Configuration: Metric, insert type, female thread, right handed

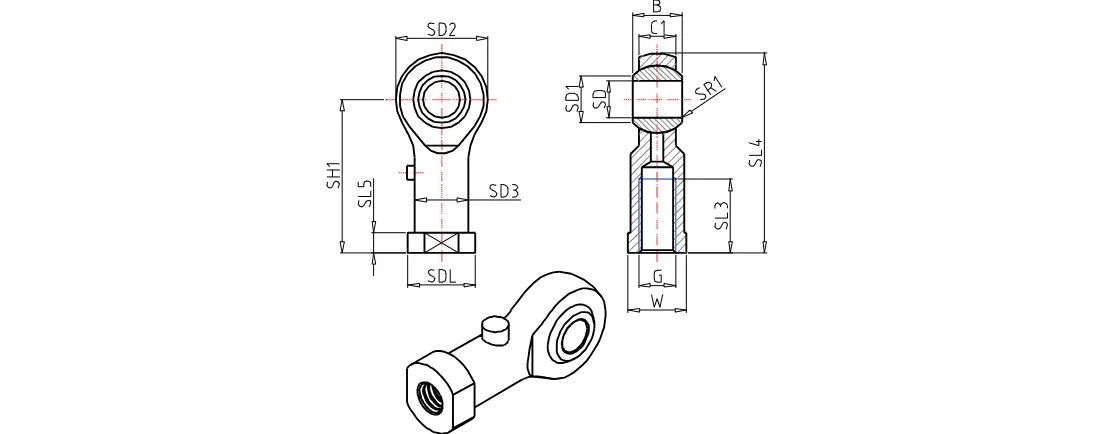

PHS25 Dimensions and Thread Specification
What dimensions are provided for the PHS25?
The supplied product data lists the following dimensional details for the PHS25 rod end:
- Inside diameter: 25 mm
- Thread: M24x2
- Diameter: 60 mm
- Width: 22.0 mm
- Width of inner ring: 31 mm
- Diameter: 29.6 mm
- Total length: 124 mm
- Dimension: 94 mm
- Length: 48 mm
- Dimension: 12.0 mm
- Width: 36.0 mm
- Diameter: 33.5 mm
- Diameter: 42.0 mm
- r1s min: 0.6 mm
- Diameter of ball: 42.862 mm
PHS25 Load Capacity and Mass Information
What load and mass values are recorded in the data?
The PHS25 rod end is supplied with the following load-capacity and mass values. Use these values with the complete product documentation when evaluating a specific installation.
- Dynamic load capacity: 46200 N
- Static load capacity: 72700 N
- Mass: 750.0 g
All specifications shown are limited to the supplied PHS25 product data.
