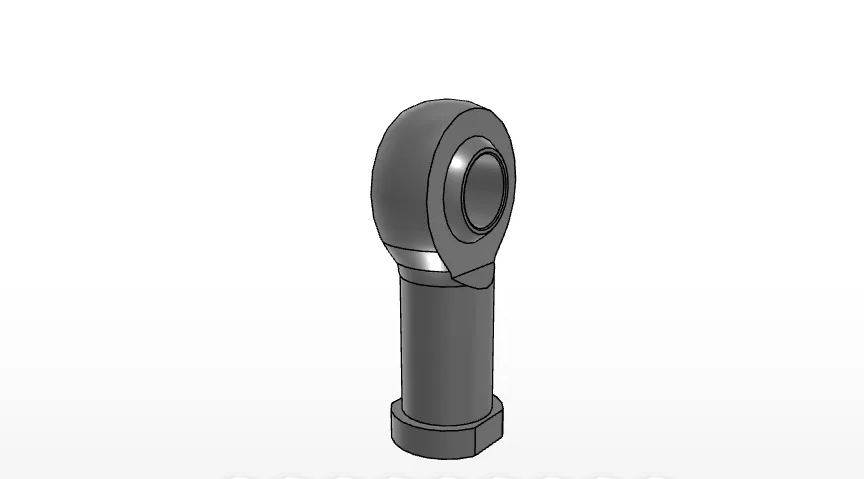

IKO PHS28
Rod End, Metric, Insert Type, Female Thread (Right Handed)
(BRAND)：IKO
(Availability)：In Stock
Order Number
PHS28
Inside Diameter
28
mm
Thread
M27x2
Diameter
66
mm
Width
25.0
mm
Width of innerring
35
mm
Diameter
32.3
mm
Total Lenght
136
mm
Dimension
103
mm
Length
53
mm
Dimension
12.0
mm
Width
41.0
mm
Diameter
37.0
mm
Diameter
46.0
mm
r1s min
0.6
mm
Diameter of Ball
47.625
mm
Dynamic load capacity
58400
N
Static load capacity
87000
N
Mass
950.0
g
