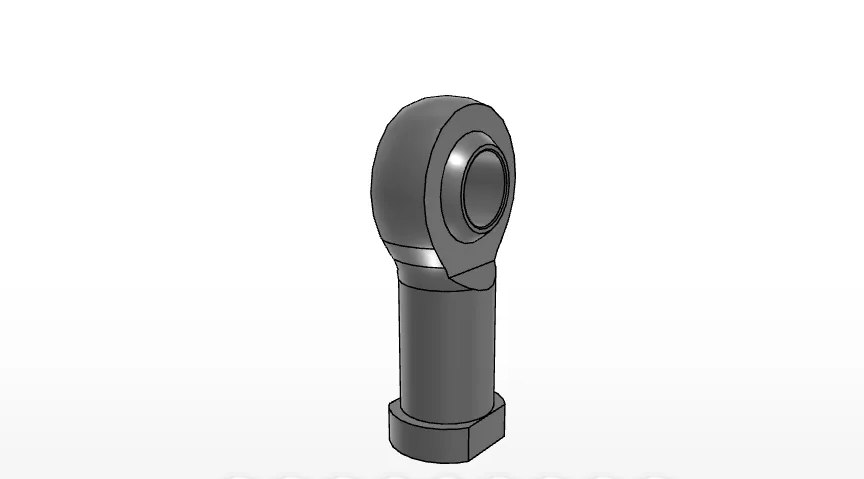

IKO PHS30L
Rod End, Metric, Insert Type, Female Thread (Left Handed)
(BRAND)：IKO
(Availability)：In Stock
Order Number
PHS30
Inside Diameter
30
mm
Thread
M30x2
Diameter
70
mm
Width
25.0
mm
Width of innerring
37
mm
Diameter
34.8
mm
Total Lenght
145
mm
Dimension
110
mm
Length
56
mm
Dimension
15.0
mm
Width
41.0
mm
Diameter
40.0
mm
Diameter
50.0
mm
r1s min
0.6
mm
Diameter of Ball
50.800
mm
Dynamic load capacity
62300
N
Static load capacity
92200
N
Mass
1130.0
g
The IKO PHS30L Is a Metric Female-Thread Rod End
What is the PHS30L?
The IKO PHS30L is part of the IKO Rod Ends series. The supplied data identifies it as a metric, insert-type rod end with a female, left-handed thread.
- Brand: IKO
- Series: Rod Ends
- Order number: PHS30L
- Bearing type: Rod end

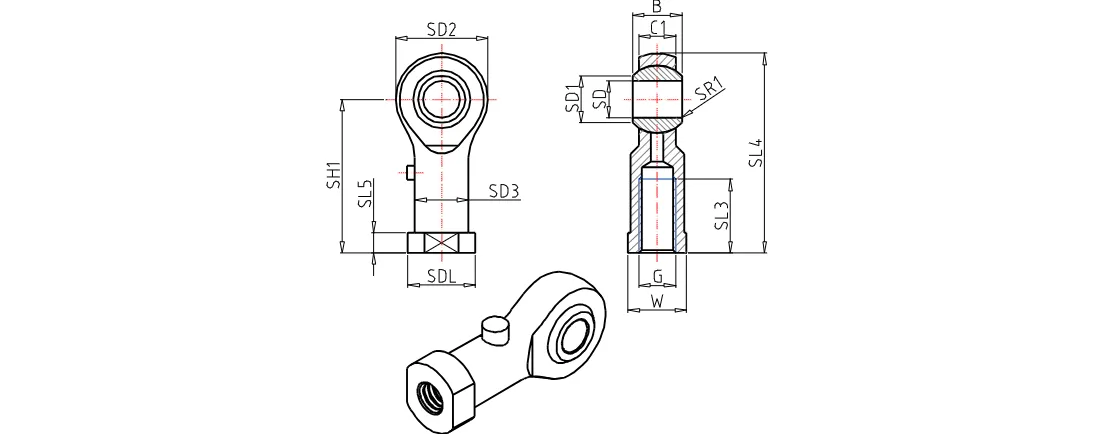

The PHS30L Has Listed Metric Size and Thread Details
What dimensions are provided for this rod end?
The product data lists the following measurements for the PHS30L:
- Inside diameter: 30 mm
- Thread: M30x2, left handed
- Overall diameter: 70 mm
- Width: 25.0 mm
- Inner-ring width: 37 mm
- Total length: 145 mm
- Ball diameter: 50.800 mm
- Mass: 1130.0 g
The PHS30L Includes Documented Load Capacity Values
What load and additional dimensional data are supplied?
The supplied product record includes dynamic and static load capacity values and additional dimensional entries. These values should be checked against the required rod-end specification before selection.
- Dynamic load capacity: 62,300 N
- Static load capacity: 92,200 N
- r1s minimum: 0.6 mm
- Additional listed dimensions: 34.8 mm diameter, 110 mm dimension, 56 mm length, 15.0 mm dimension, 41.0 mm width, 40.0 mm diameter, and 50.0 mm diameter
