IKO PHS3EC
Rod End, Metric, Female Thread, Maintenance Free Type (Right Handed)

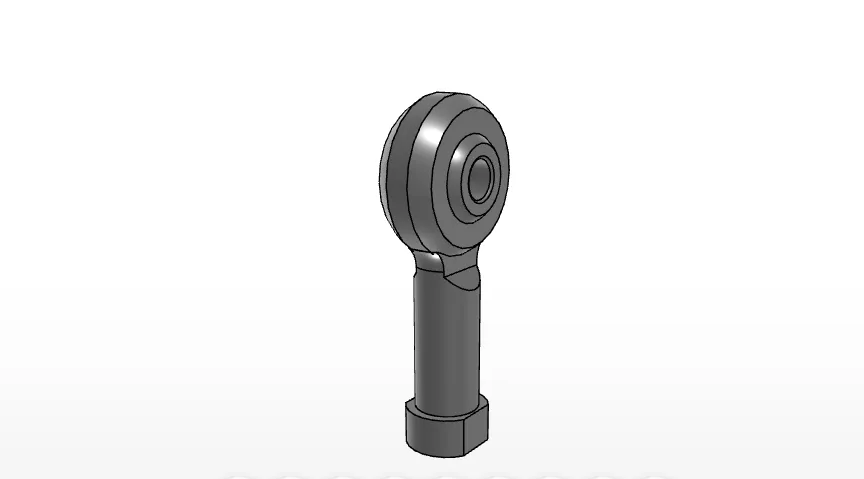

PHS3EC IKO Rod End Overview
The PHS3EC is an IKO Rod End with metric sizing, female thread, and a maintenance-free type design described as right handed. It is listed within the IKO Rod Ends product category.
What are the basic rod end details?
The supplied data identifies the product as order number PHS3EC, brand IKO, series Rod Ends, bearing type Rod Ends, and configuration Metric, Female Thread, Maintenance Free Type (Right Handed).
PHS3EC Dimensions and Thread Specifications
The PHS3EC includes a 3 mm inside diameter and M3x0.5 female thread. Additional supplied dimensional data covers the body, inner ring, ball, lengths, widths, diameters, and minimum edge radius.
- Inside diameter: 3 mm
- Thread: M3x0.5
- Diameter: 12 mm
- Width: 4.50 mm
- Inner ring width: 6 mm
- Total length: 27 mm
- Length: 10.0 mm
- Ball diameter: 7.938 mm
- r1s min: 0.2 mm
- Mass: 5.7 g
What additional size values are provided?
The product data also lists 5.2 mm diameter, 21 mm dimension, 3.0 mm dimension, 5.5 mm width, 5.0 mm diameter, and 6.5 mm diameter. Use these values only as the specified product measurements without inferring unnamed dimension roles.
PHS3EC Load Ratings and Product Identification
The supplied performance values for the PHS3EC are a dynamic load capacity of 3500 N and a static load capacity of 2480 N. These ratings support product comparison and selection based on the published rod end data.
How can the rod end be identified?
Identify this product by the order number PHS3EC, IKO branding, Rod Ends series, metric female M3x0.5 thread, 3 mm inside diameter, right-handed maintenance-free description, and the listed dimensions and load capacities.
