IKO PHS3ECL
Rod End, Metric, Female Thread, Maintenance Free Type (Left Handed)
(BRAND)：IKO
(Availability)：In Stock
Order Number
PHS3EC
Inside Diameter
3
mm
Thread
M3x0.5
Diameter
12
mm
Width
4.50
mm
Width of innerring
6
mm
Diameter
5.2
mm
Total Lenght
27
mm
Dimension
21
mm
Length
10.0
mm
Dimension
3.0
mm
Width
5.5
mm
Diameter
5.0
mm
Diameter
6.5
mm
r1s min
0.2
mm
Diameter of Ball
7.938
mm
Dynamic load capacity
3500
N
Static load capacity
2480
N
Mass
5.7
g

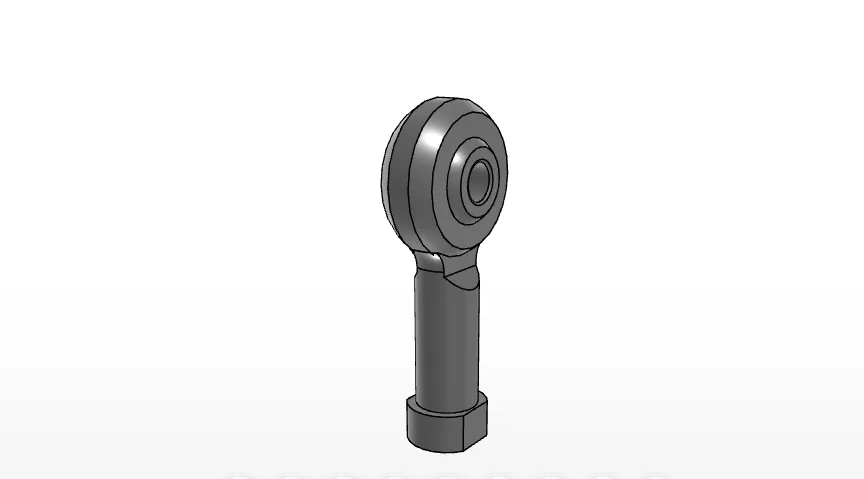

The PHS3ECL Is an IKO Rod End
What basic product identification applies to this rod end?
The PHS3ECL is an IKO rod end in the Rod Ends product series. The supplied description identifies it as a metric, female-thread, maintenance-free type with a left-handed thread arrangement.
- Model: PHS3ECL
- Order number listed: PHS3EC
- Brand: IKO
- Bearing type: Rod Ends
- Category path: Brand > IKO > Rod Ends
The PHS3ECL Uses Metric Bore and Thread Dimensions

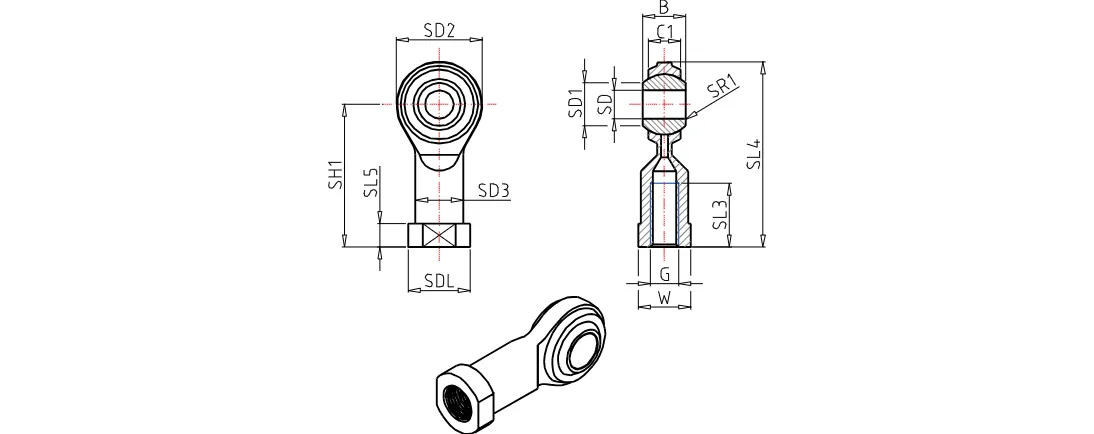

What dimensions are supplied for this model?
The product data lists the following measurements for the PHS3ECL:
- Inside diameter: 3 mm
- Thread: M3 x 0.5, left handed
- Diameter: 12 mm
- Width: 4.50 mm
- Width of inner ring: 6 mm
- Diameter: 5.2 mm
- Total length: 27 mm
- Dimension: 21 mm
- Length: 10.0 mm
- Dimension: 3.0 mm
- Width: 5.5 mm
- Diameter: 5.0 mm
- Diameter: 6.5 mm
- r1s min: 0.2 mm
- Diameter of ball: 7.938 mm
The PHS3ECL Includes Listed Load and Mass Data
What load capacities and mass are stated in the product data?
The supplied product data provides the following load and mass values. These values are stated as product data and should be used with the relevant engineering or selection requirements for the installation.
- Dynamic load capacity: 3500 N
- Static load capacity: 2480 N
- Mass: 5.7 g
The rod end is described by the supplied product title as a maintenance-free type; no additional service, certification, application, stock, or manufacturer-performance details are provided in the data.
