IKO PHS3L
Rod End, Metric, Insert Type, Female Thread (Left Handed)

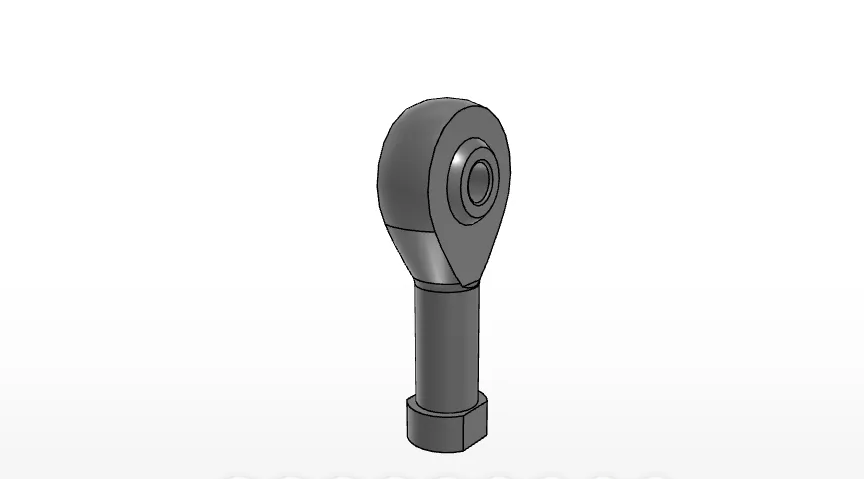

IKO PHS3L Rod End for Metric Rod End Applications
The IKO PHS3L is part of the IKO Rod Ends series and is listed as a metric, insert-type rod end with female, left-handed thread. Its order number is PHS3, and the supplied bearing type is Rod Ends.
What is the IKO PHS3L?
The PHS3L is an IKO rod end configured with an M3x0.5 left-hand female thread and a 3 mm inside diameter. It belongs to the product category path Brand > IKO > Rod Ends.
PHS3L Dimensions and Thread Specification

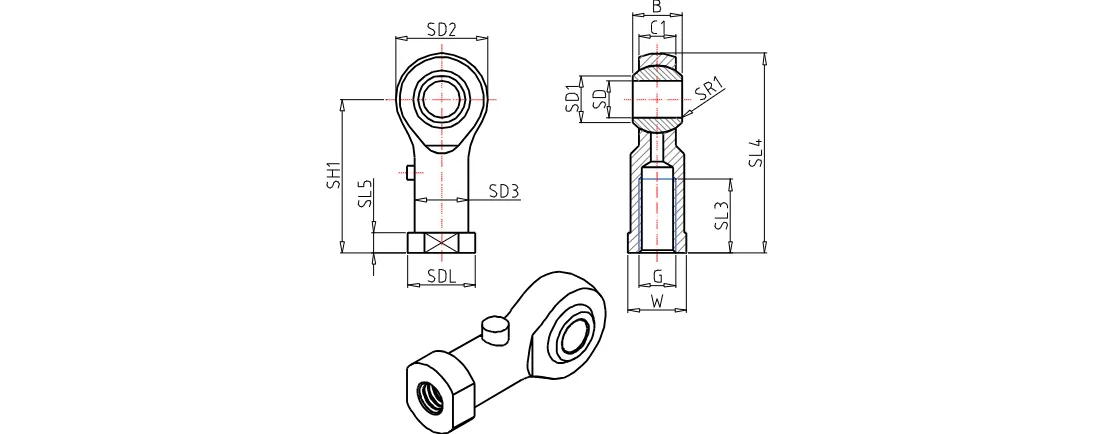

The supplied dimensional data identifies the PHS3L with the following measurements:
- Inside diameter: 3 mm
- Thread: M3x0.5
- Diameter: 12 mm
- Width: 4.5 mm
- Width of inner ring: 6 mm
- Total length: 27 mm
- Length: 10 mm
- r1s min: 0.2 mm
- Diameter of ball: 7.938 mm
- Mass: 5.7 g
What additional dimensional values are provided?
The product data also lists a 5.2 mm diameter, 21 mm dimension, 3.0 mm dimension, 5.5 mm width, 5.0 mm diameter, and 6.5 mm diameter. These values should be checked against the relevant PHS3L drawing or installation requirement before selection.
PHS3L Load Capacity and Product Identification
The IKO PHS3L rod end has a stated dynamic load capacity of 1750 N and a static load capacity of 3670 N. The product is identified by order number PHS3 within the IKO rod end range.
How should the PHS3L be identified when ordering?
Use the supplied order number PHS3 and confirm the described configuration: metric rod end, insert type, female thread, and left-handed thread. The thread specification is M3x0.5, with a 3 mm inside diameter.
